For front turning operations ｜ Swiss CNC Lathes

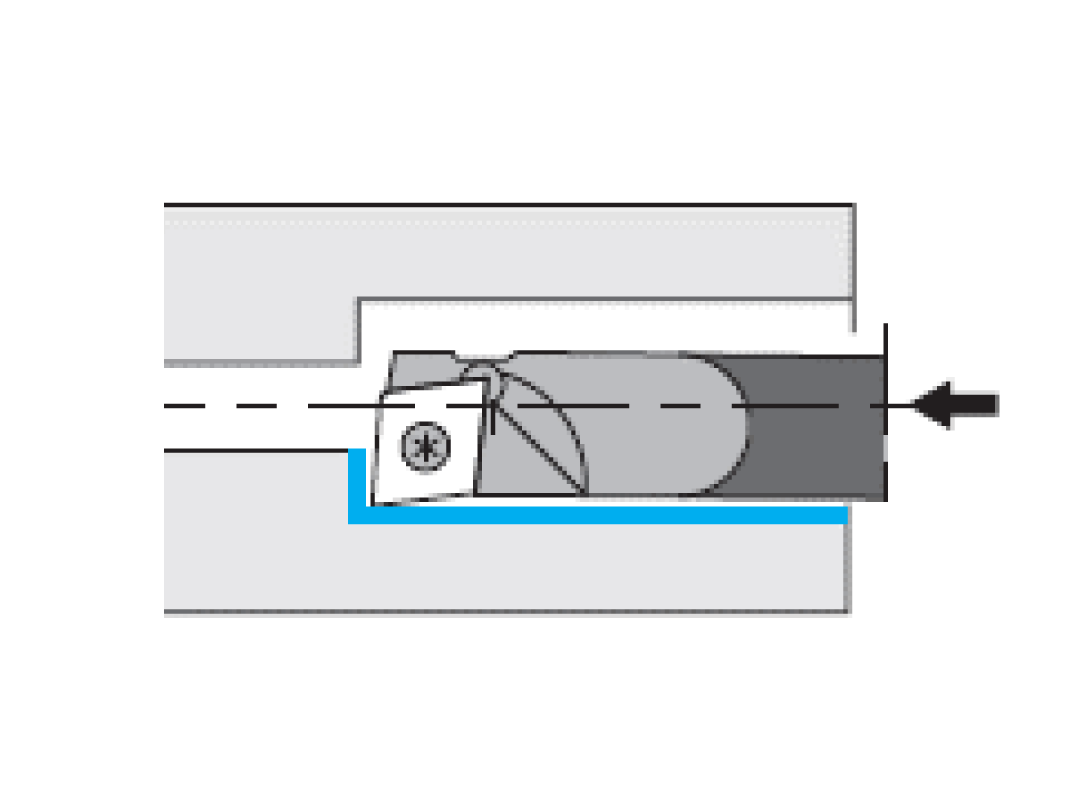

Swiss CNC Lathe front turning operations
| ISO | Work material | Grade | vc (m/min) (SFM) | ap (mm) (inch) | f (mm/rev) (IPR) |
|---|---|---|---|---|---|
 |
Carbon steel Alloy steel |
650 | 40 – 150 130 – 500 | 0.05 – 0.3 .002 – .012 | 0.03 – 0.1 .001 – .004 |
| DT4 DM4 |
|||||
| TM4 | 40 – 90 130 – 300 | ||||
 |
Difficult-to-cut Free-cutting stainless steel |
650 | 40 – 150 130 – 500 | 0.05 – 0.3 .002 – .012 | 0.03 – 0.1 .001 – .004 |
| ST4 | 40 – 180 130 – 600 | ||||
| DT4 DM4 |
40 – 100 130 – 330 | ||||
| TM4 | 40 – 90 130 – 300 | ||||
 |
HRSA Co-Cr alloy Titanium |
650 | 20 – 80 70 – 260 | 0.05 – 0.3 .002 – .012 | 0.03 – 0.1 .001 – .004 |
| HRSA Co-Cr alloy |
DT4 DM4 |
||||
 |
Non-ferrous metal | TM4 | 40 – 180 130 – 600 | 0.05 – 0.3 .002 – .012 | 0.03 – 0.1 .001 – .004 |
| Machine parts | |
|---|---|
|
 |
|
|
|
|
|
|
|
|

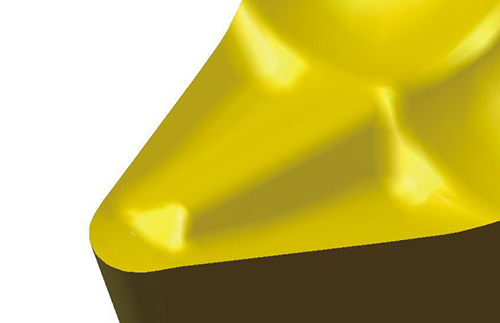

| DM4+ AMX chipbreaker |
10 pcs / corner
|
| Competitor’s molded chipbreaker (coated cermet) |
5pcs / corner
|

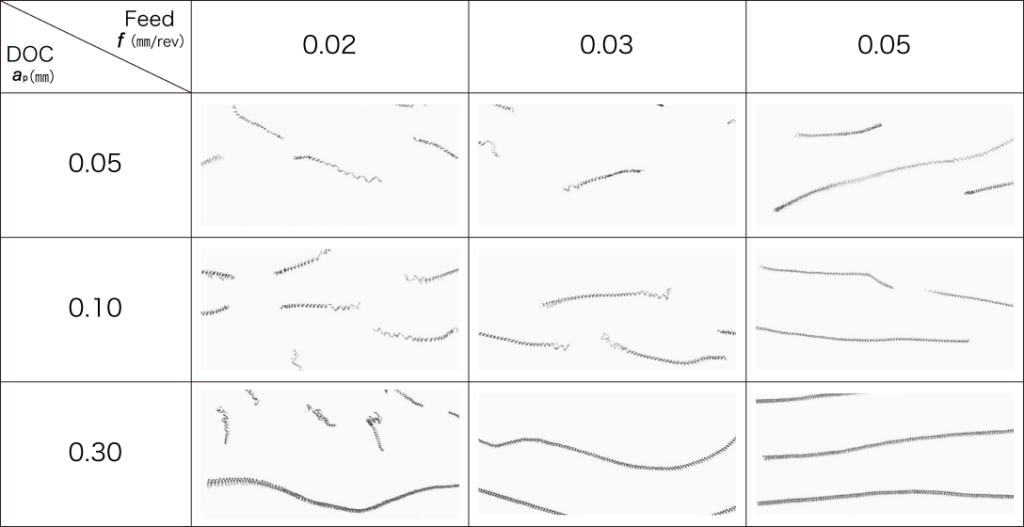

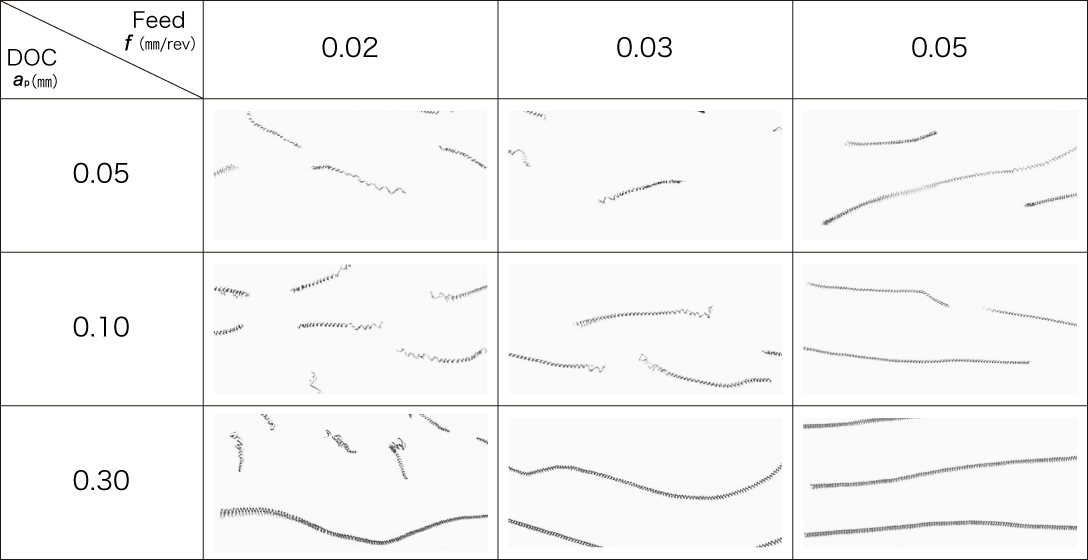

AMX achieved stable machining performance and good chip control.
For more information about this product, visit our online e-catalog, or download the catalog/product report
