Free-Cutting Steel Machining
A thin-layer TiCN coating provides outstanding edge sharpness while maintaining excellent wear resistance. Enables long tool life and high-precision machining.
Free-cutting steel
| ISO | Material | Chipbreaker | Grade | vc (m/min) (SFM) | ap (mm) (inch) | f (mm/rev) (IPR) |
|---|---|---|---|---|---|---|
 | Carbon steel Alloy steel | AM3 | VM1 | 40 – 150 130 – 500 | 0.4 – 2.0 .016 – .080 | 0.05 – 0.2 .002 – .008 |
| S | 0.1 – 3.0 .004 – .120 | 0.05 – 0.2 .002 – .008 | ||||
| KHG | 0.1 – 0.5 .004 – .020 | 0.05 – 0.1 .002 – .004 | ||||
 | Difficult-to-cut Free-cutting stainless steel | AM3 | 40 – 90 130 – 300 | 0.4 – 2.0 .016 – .080 | 0.05 – 0.2 .002 – .008 | |
| S | 0.1 – 3.0 .004 – .120 | 0.05 – 0.2 .002 – .008 | ||||
| KHG | 0.1 – 0.5 .004 – .020 | 0.05 – 0.1 .002 – .004 |

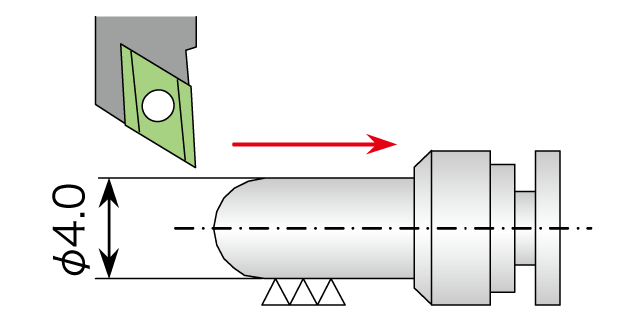

| Plug terminal | |
|---|---|
|  |
| |
| |
| |
| |
| VM1 | 800-1000 pcs / corner |
| Competitor’s PVD coated | 150 pcs / corner |
Stable dimensional accuracy and surface finish, with 5× longer tool life than the competitor.
