Machine heavy scale & interruptions on heat resistant alloys｜ Sialon ceramic
Finishing Heat resistant alloys
Turning / grooving through scale

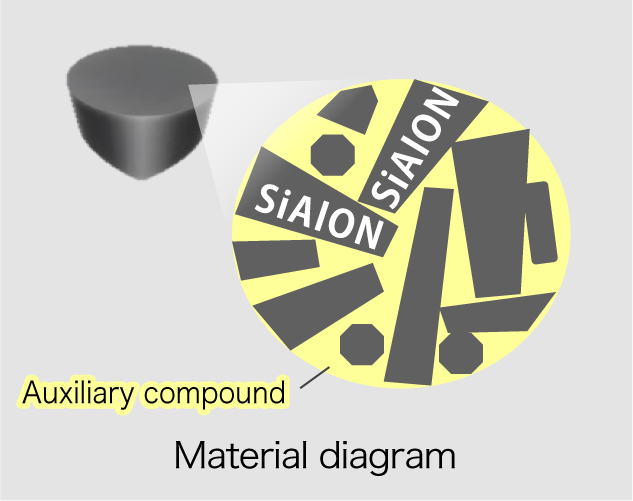

Silicon nitride (Si3N4) is combined with Aluminum (Al) and oxygen (O) to make SiAlON.
Sialon has needle-shaped particles similar to that of Silicon nitride.
The arrangement of these particles makes the material withstand the impact force during cutting.
The addition of the alumina improves its heat resistance characteristics.
The property advantages makes it perfect for machining heat resistant alloys.
| Grade | Material | Operation type | Machining | Cutting speed (m/min) Cutting speed (SFM) | Feed(mm/rev) Feed(IPR) | DOC(mm) DOC(inch) | Coolant |
|---|---|---|---|---|---|---|---|
| SX5 | Heat resistant alloys | Turning | Roughing with scale | 180 – 240 550 – 950 | 0.2 – 0.35 .008 – .014 | 1.0 – 5.0 .040 – .200 | WET |
| Grooving | 0.07 – 0.17 .003 – .007 | – |

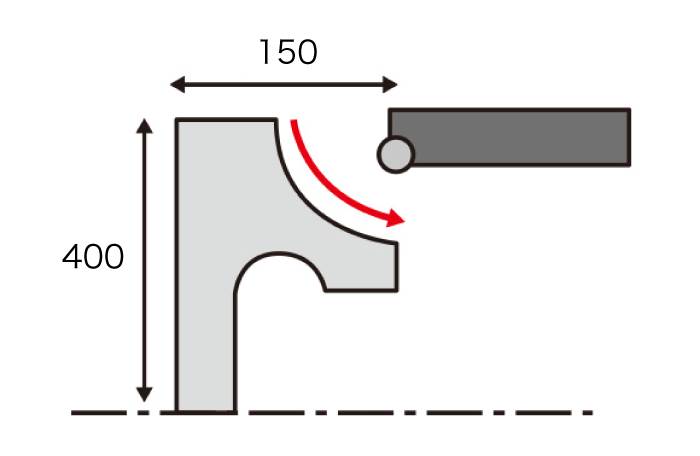

| Ring (Roughing with scale) | |
|---|---|
|
 |
|
|
|
|
|
|
|
|
| SX5 |
1 pass
|
| Current tool (competitor’s whisker) |
1 pass
|
High feed rate is possible because of SX5’s toughness.
It achieved 2.5 times more efficient results compared to the competitor’s whisker.

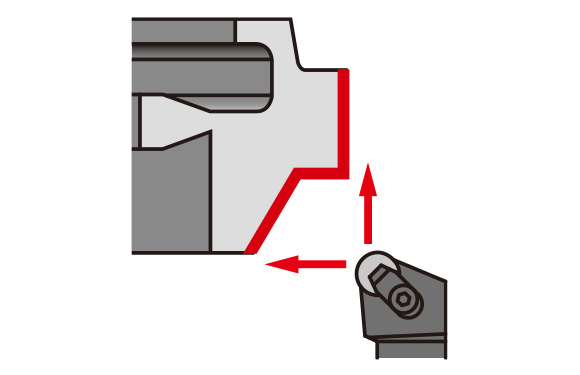

| Aircraft part (Roughing with scale) | |
|---|---|
|
 |
|
|
|
|
|
|
|
|
| SX5 |
1 pass
|
| Current tool (competitor’s Sialon ceramic) |
1 pass Chipping
|
SX5 insert had more stable performance and no edge chipping compared to the competitor’s Sialon grade.
For more information about this product, visit our online e-catalog, or download the catalog/product report
