Machines through scale on heat resistant alloys ｜ Sialon ceramic
Heat resistant alloys
Turning / Milling / End milling: roughing operations

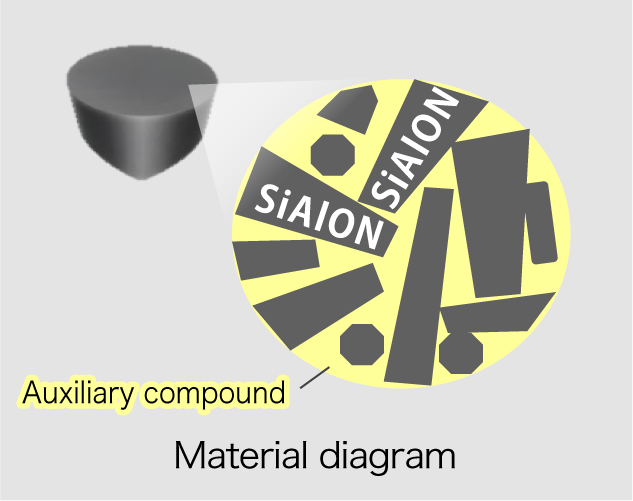

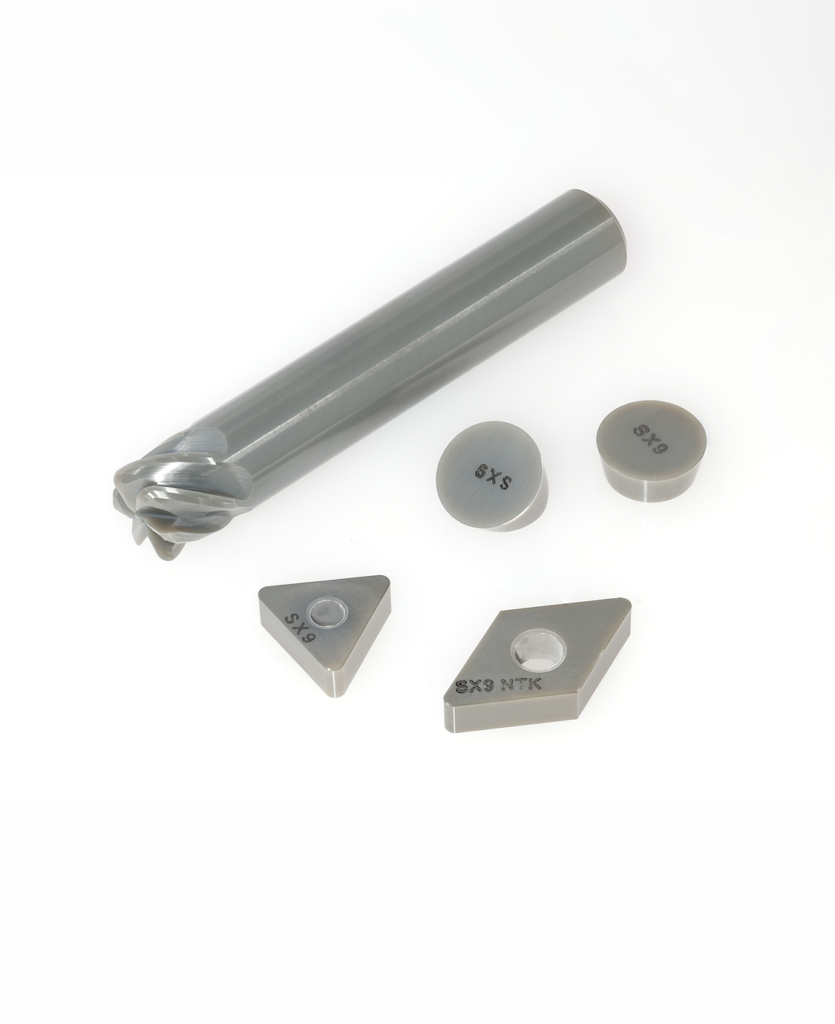

Silicon nitride (Si3N4) is combined with Aluminum (Al) and oxygen (O) to make SiAlON.
Sialon has needle-shaped particles similar to that of Silicon nitride.
The arrangement of these particles makes the material withstand the impact force during cutting.
The addition of the alumina improves its heat resistance characteristics.
The property advantages makes it perfect for machining heat resistant alloys.
| Grade | Material | Operation type | Machining | Cutting speed (m/min) Cutting speed (SFM) | Feed(mm/rev) Feed (IPR / IPT) | DOC(mm) DOC(inch) | Coolant |
|---|---|---|---|---|---|---|---|
| SX9 | Heat resistant alloys | Turning | Roughing (scale or no scale) | 180 – 240 600 – 800 | 0.20 – 0.35 .008 – .014 | 1.0 – 5.0 .040 – .200 | WET |
| Profiling / Semi-finishing | 180 – 270 600 – 900 | 0.15 – 0.30 .006 – .012 | 1.0 – 2.0 .040 – .080 | ||||

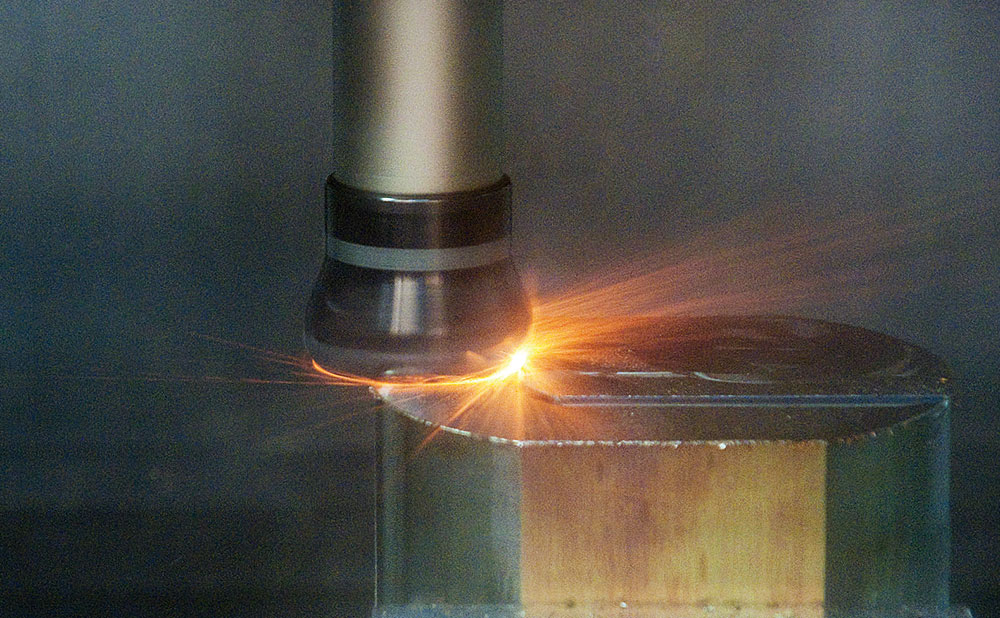

| Milling | Indexable | 450 – 1000 1500 – 3300 | 0.02 – 0.03 .0008 – .001 | 1.0 – 2.5 .040 – .100 | DRY | ||

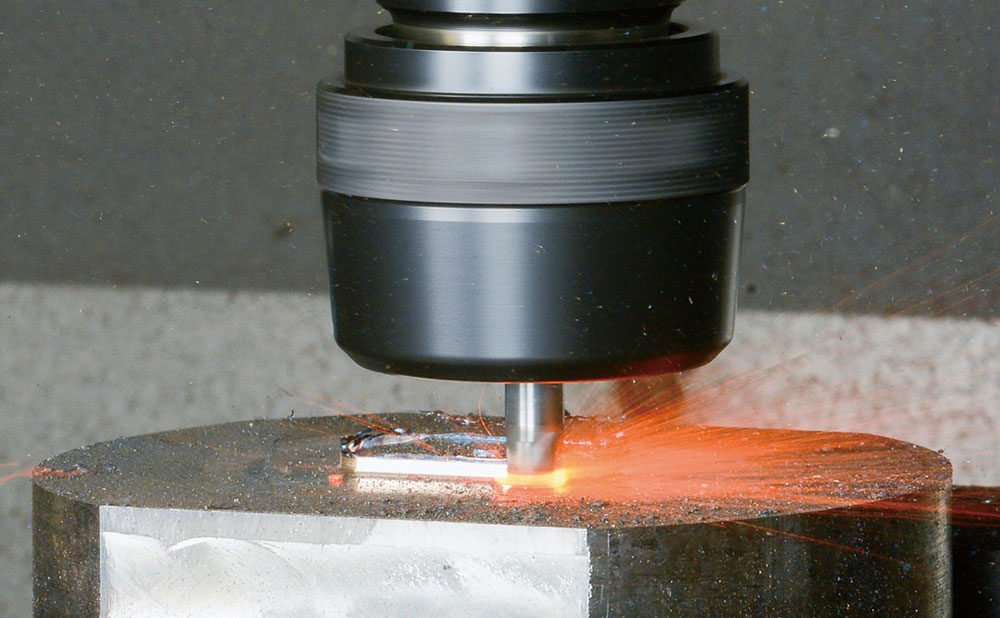

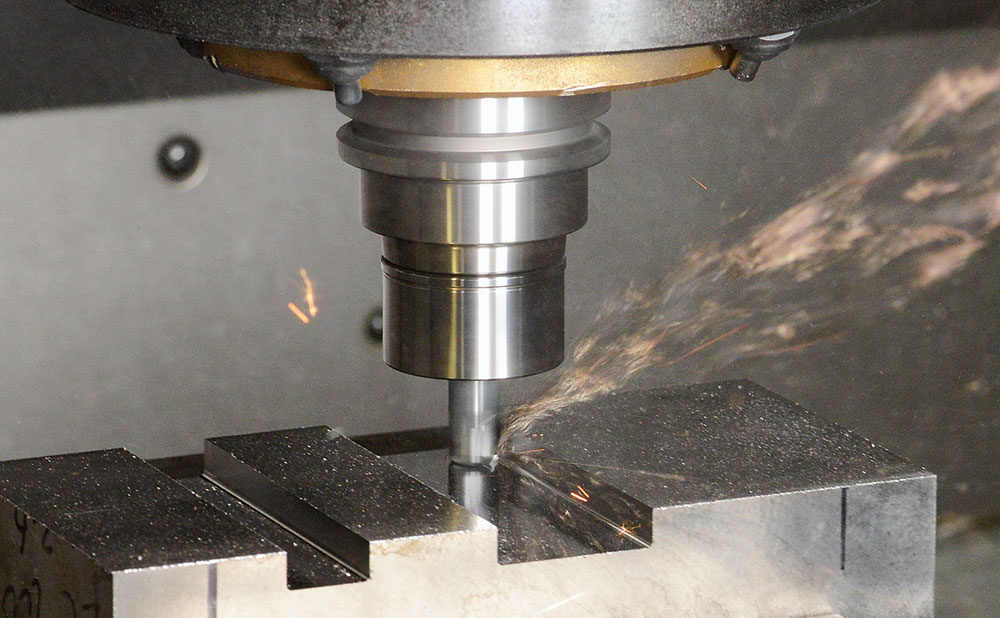

| End milling | – | 300 – 1000 1000 – 3300 | 0.05 – 0.1 .002 – .004 | – |

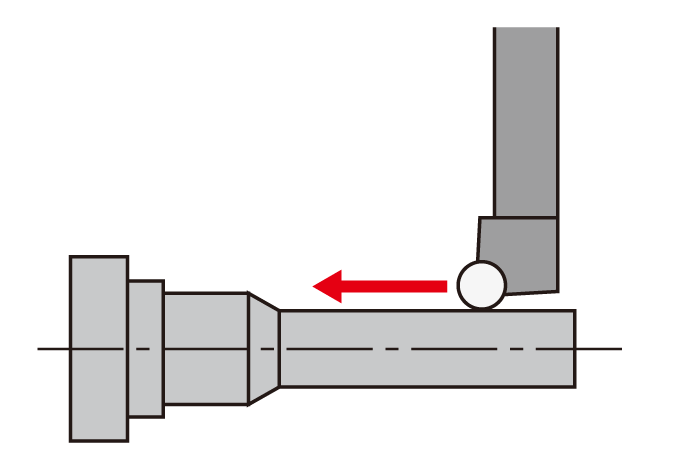

| Aircraft part (with scale) | |
|---|---|
|
 |
|
|
|
|
|
|
|
|
| SX9 |
2 pcs / corner
|
| Competitor’s whisker |
1 pcs / corner
|
SX9 is a significant cost advantage and double the tool life compared to competitor’s whisker insert.

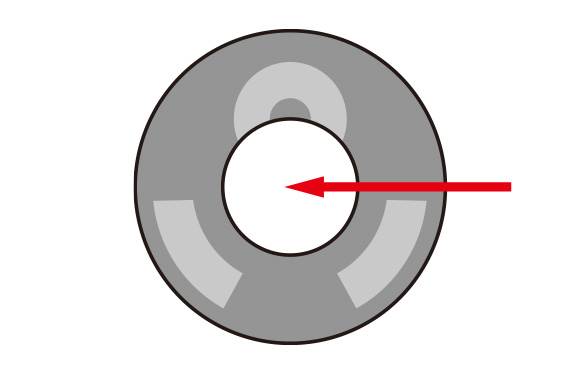

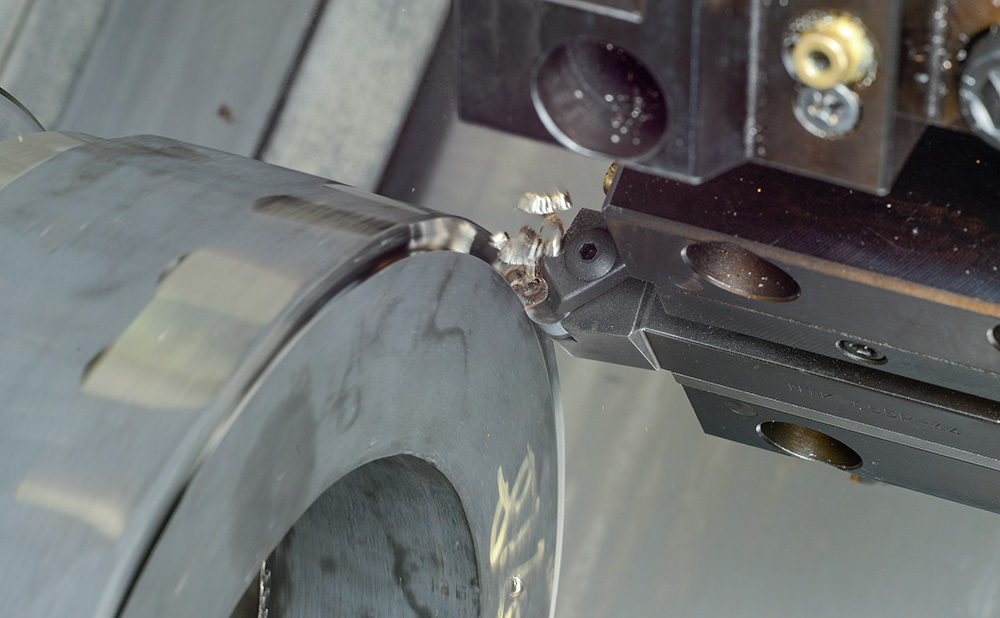

| Ring (with scale) | |
|---|---|
|
 |
|
|
|
|
|
|
|
|
| SX9 |
10 pass
|
| Competitor’s whisker |
5 pass
|
SX9 doubled the tool life compared to the competitor’s whisker grade.
For more information about this product, visit our online e-catalog, or download the catalog/product report
