Metal Additive Manufacturing Work Processing

Roughing with metal additive manufacturing work ｜ Sialon ceramic

Grade for metal additive manufacturing workpiece processing
Home / HRSA - Unique Solutions / Metal Additive Manufacturing Work Processing

Achieving speedy rough cutting of metal additive manufacturing workpieces (nickel-based alloys)

Capable of high-speed machining about 10 times faster than carbide tools
Grade characteristics
Features
  • Additively shaped nickel-based alloys can be machined with high efficiency
  • Uses a ceramic material that emphasizes chipping resistance
    Achieves high-speed and stable machining
  • Lineup of tools for milling and end milling
Tooling application
Additively manufactured workpieces using nickel-based alloys

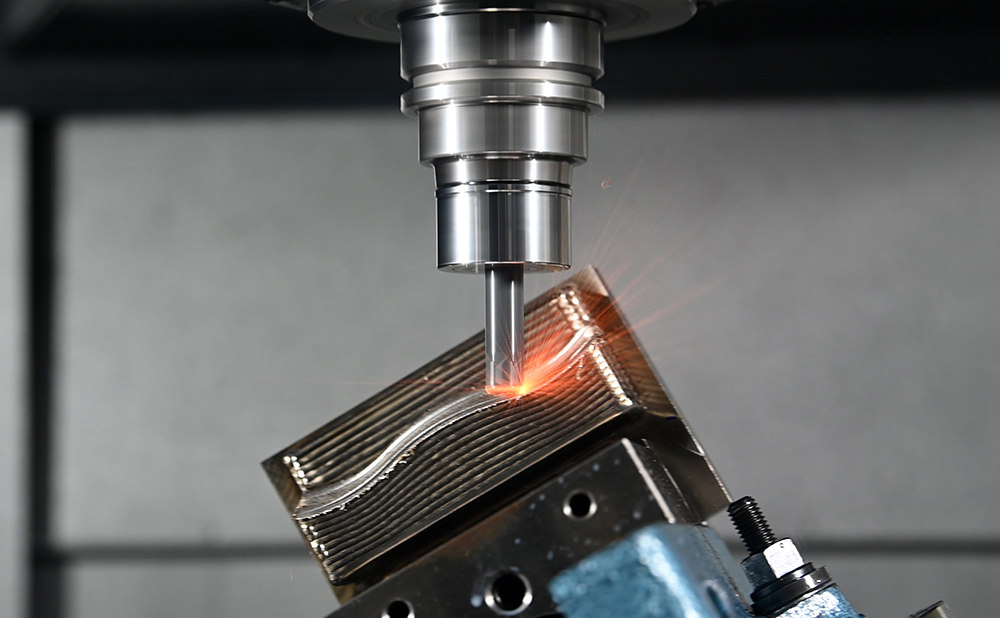

Milling / End milling: roughing operations

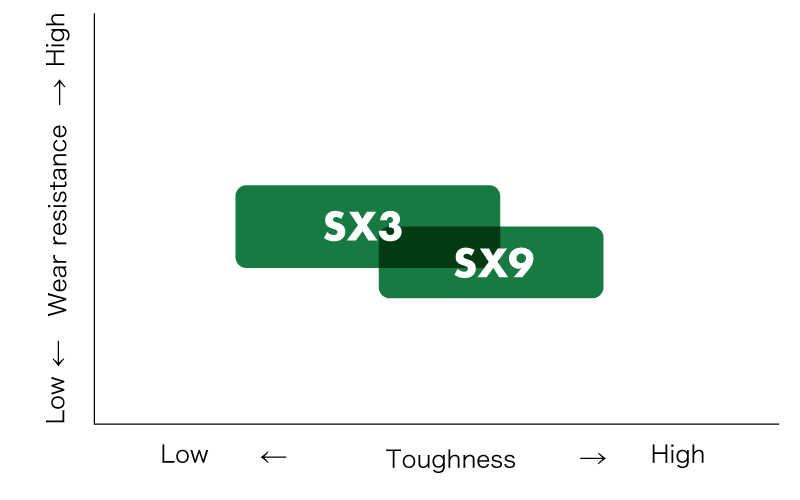

Grade map
MILLING
↑High



SPEED
SX7 SX3 SX9
SEMI-FINISH  SCALE
FEED

High→

End milling
Milling

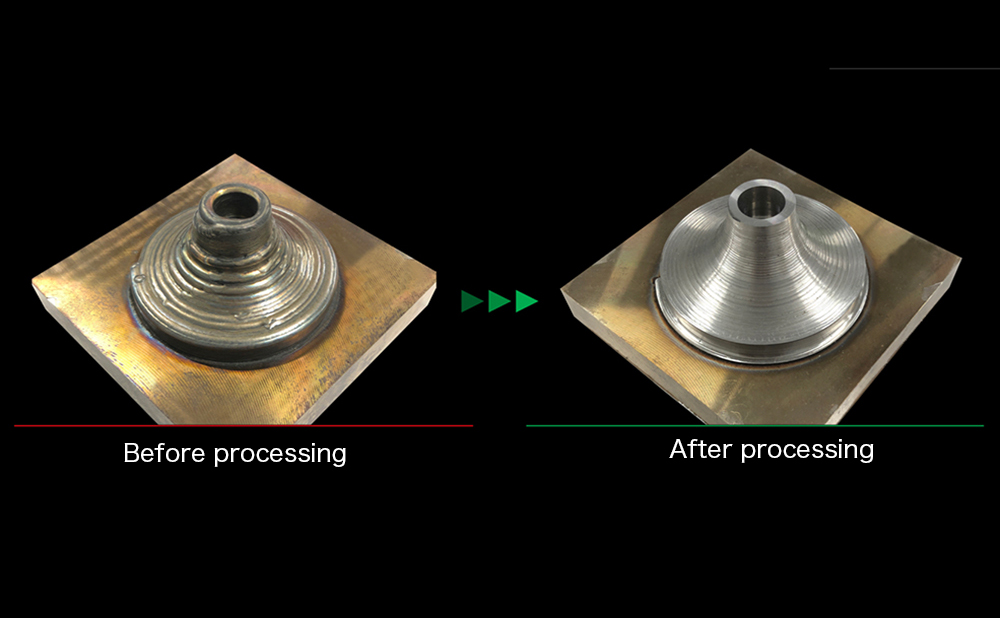

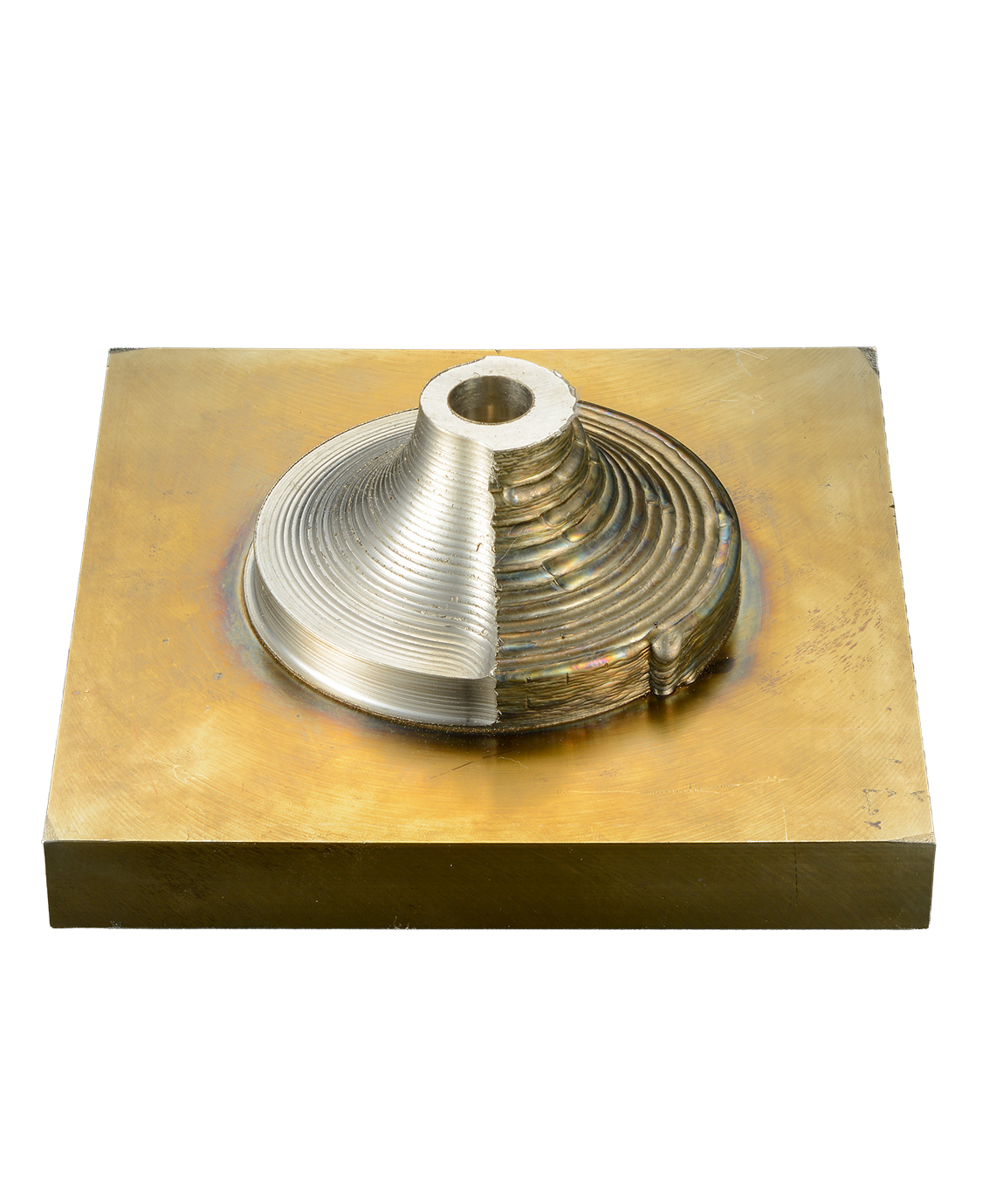

Workpiece comparison before and after cutting ①

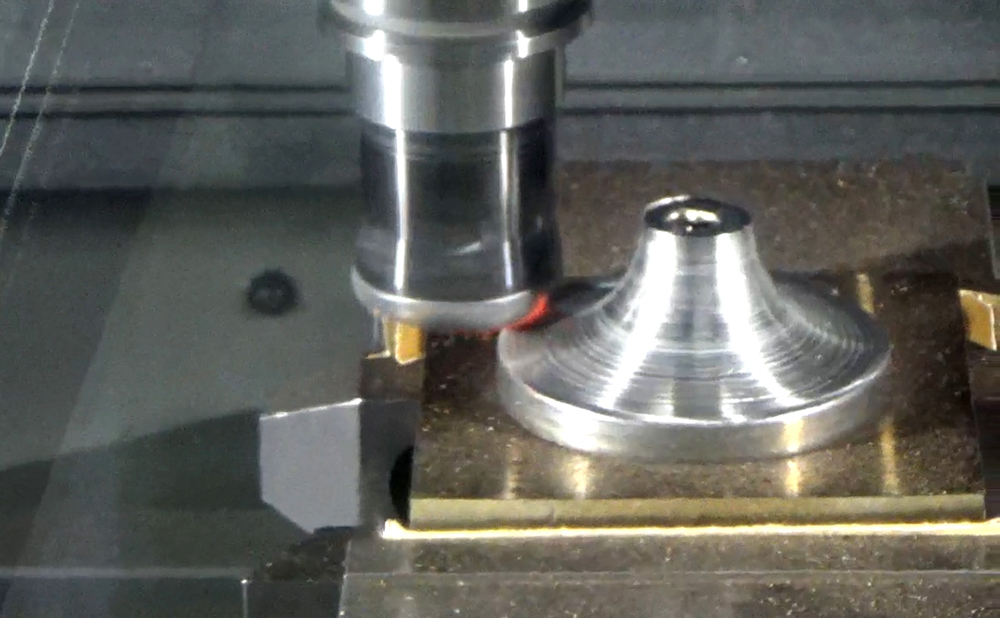

Machining that takes about 8 minutes with a carbide tool can be shortened to about 1 minute with a ceramic tool.

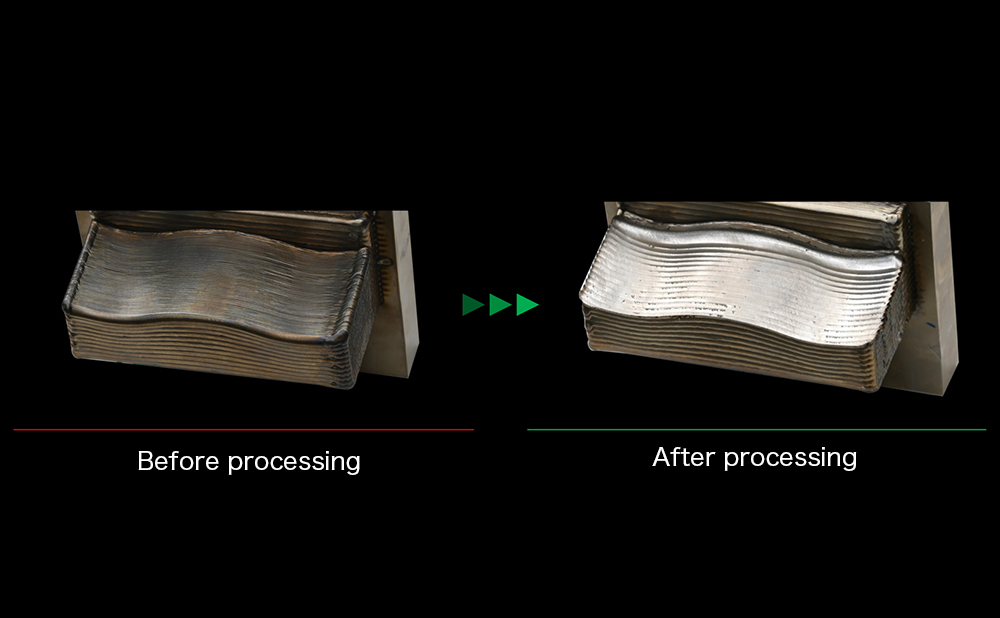

Workpiece comparison before and after cutting ②
Achieves high-efficiency machining approximately 20 times that of carbide tools.
Lineup (Insert)

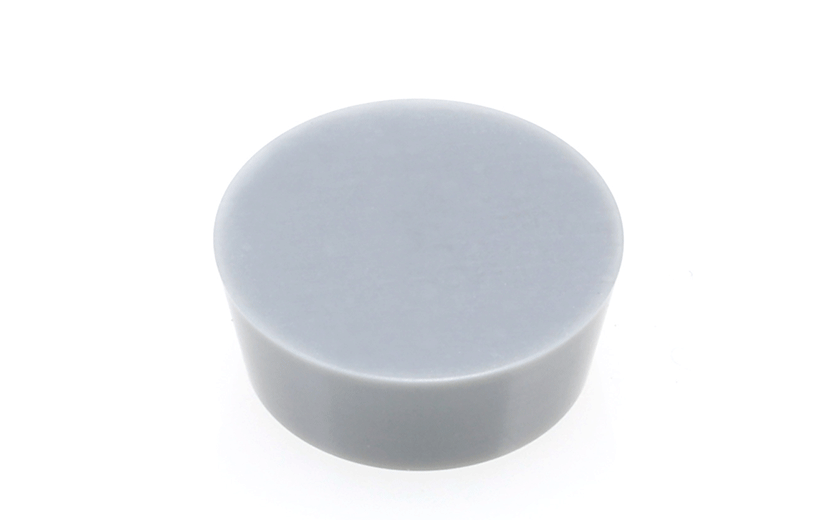

RN.N type

RPGN type

Lineup (Toolholder)

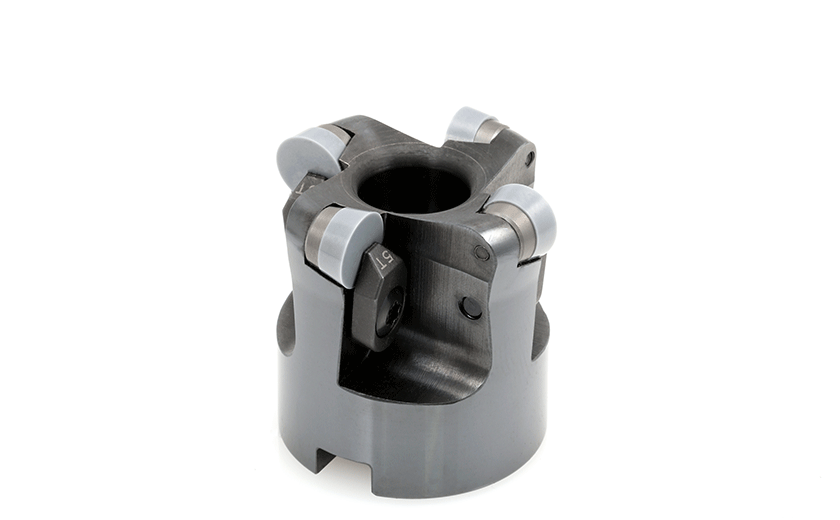

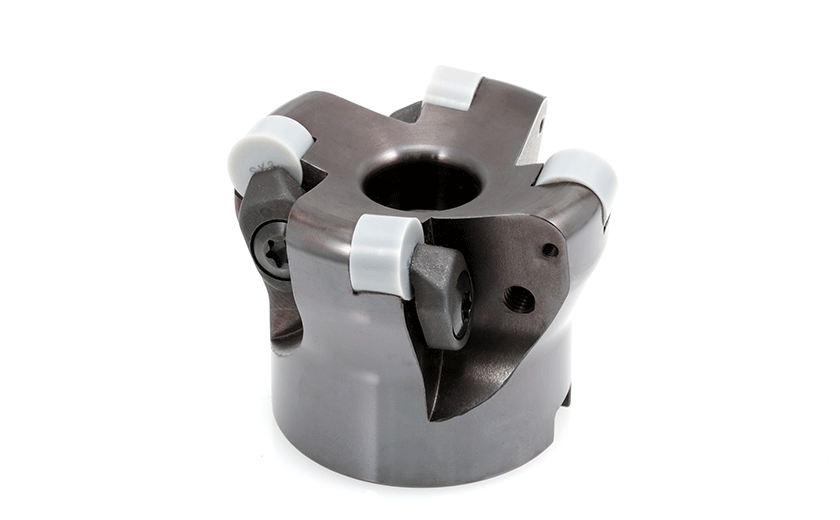

JRNMW Arbor type Cutter

JRPMW Arbor type Cutter

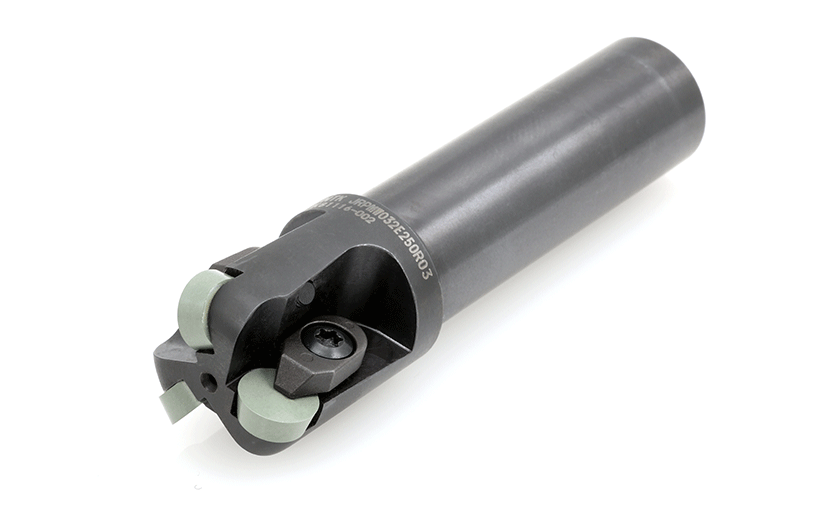

JRPMW Shank type Cutter

Lineup (Endmill)

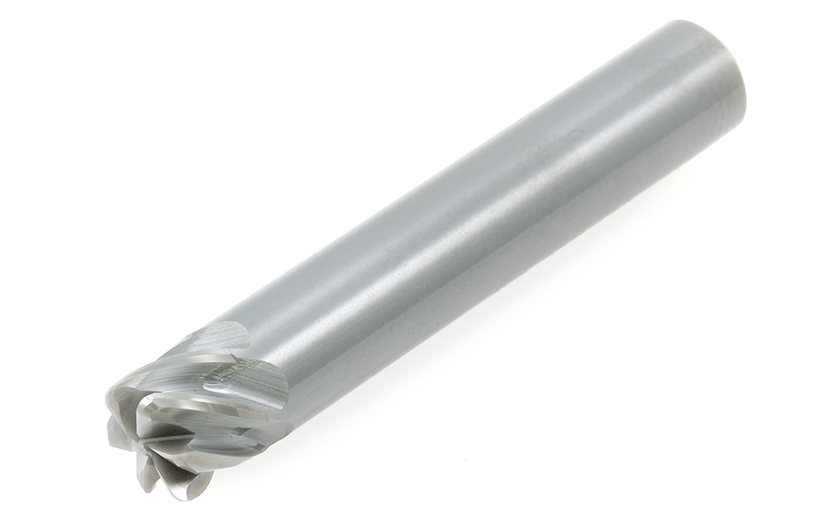

RCE-H4 CERAMATIC ENDMILL FOR HRSA MATERIAL

RCE-J6 CERAMATIC ENDMILL FOR HRSA MATERIAL

- - - Scroll the table - - -
ISO Work material Coolant Grade vc (m/min) (SFM) ap (mm) (inch) f (mm/t) (IPT)
Additive manufacturing workpiece
(Nickel-based alloy)
Rough Milling		 DRY SX3 450 – 1,000 1500 – 3300 – 0.07 – 0.12 .003 – .005
SX9
Additive manufacturing workpiece
(Nickel-based alloy)
Rough End Milling		 DRY SX9 300 – 1,000 1000 – 3300 – 0.03 .001
View more JRNMW reports
View more RNGN reports
View more End Mill reports
