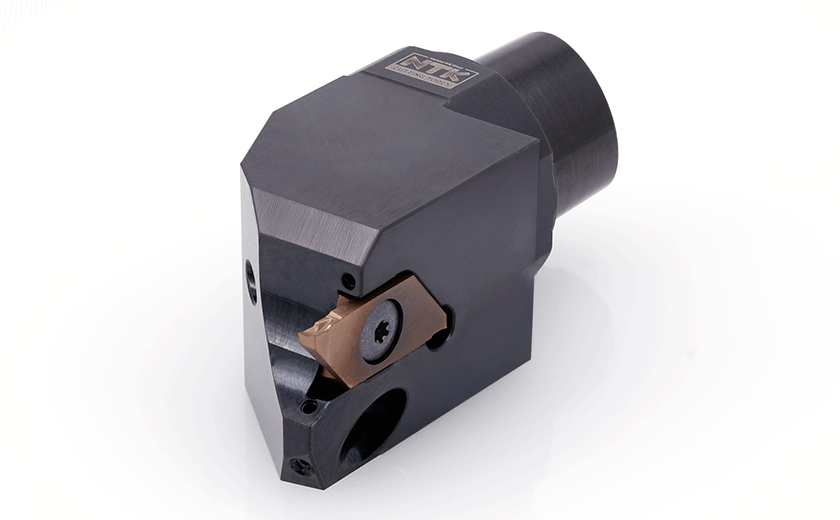

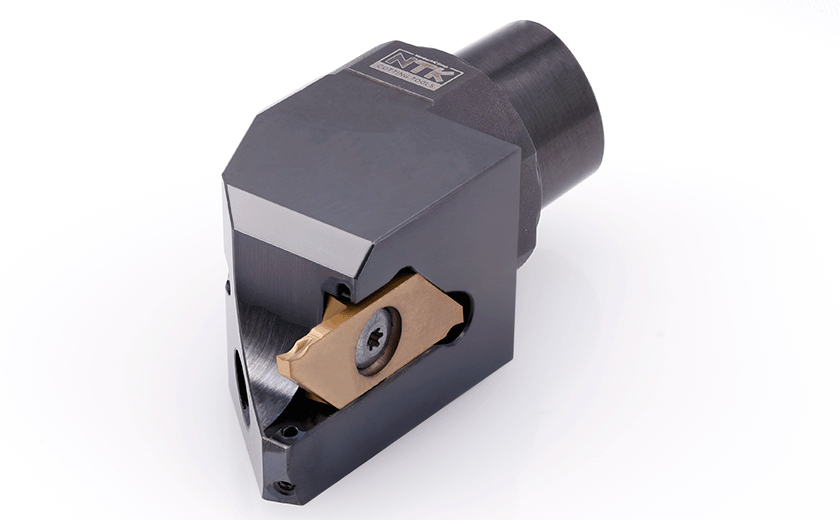

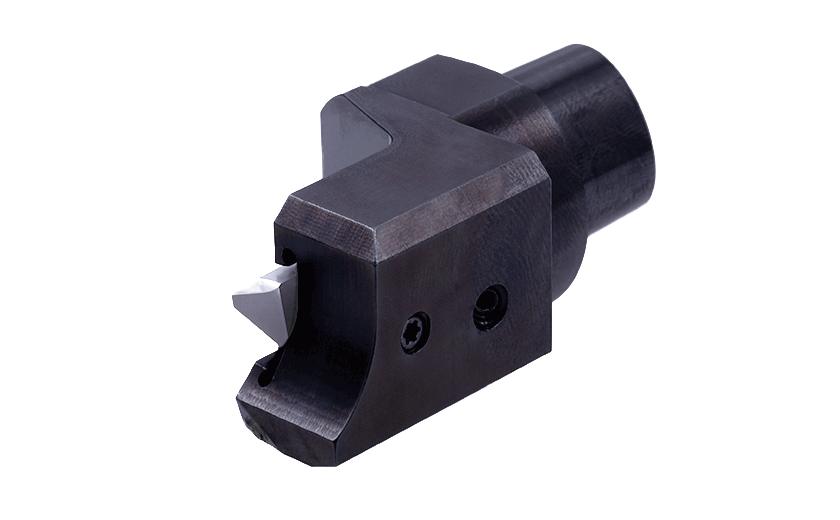

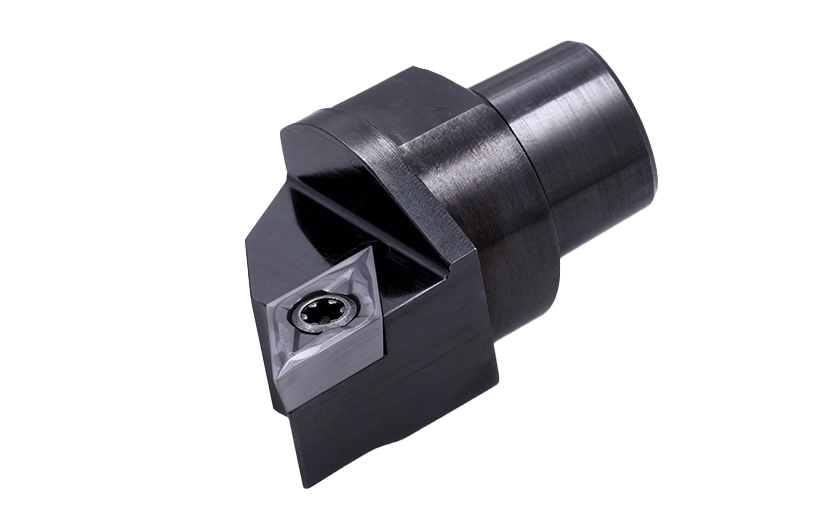

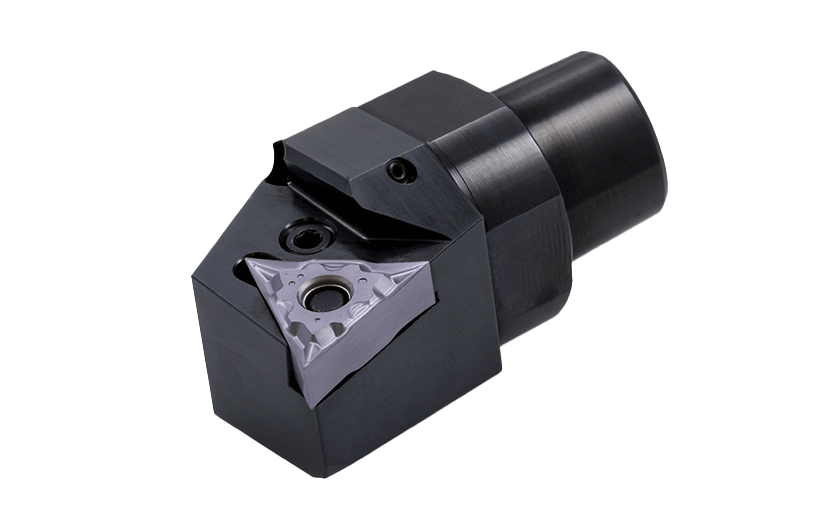

N-Swiss CAP

Polygon‑taper quick‑change tooling system for maximum efficiency.

Home / Tooling Systems / N-Swiss CAP

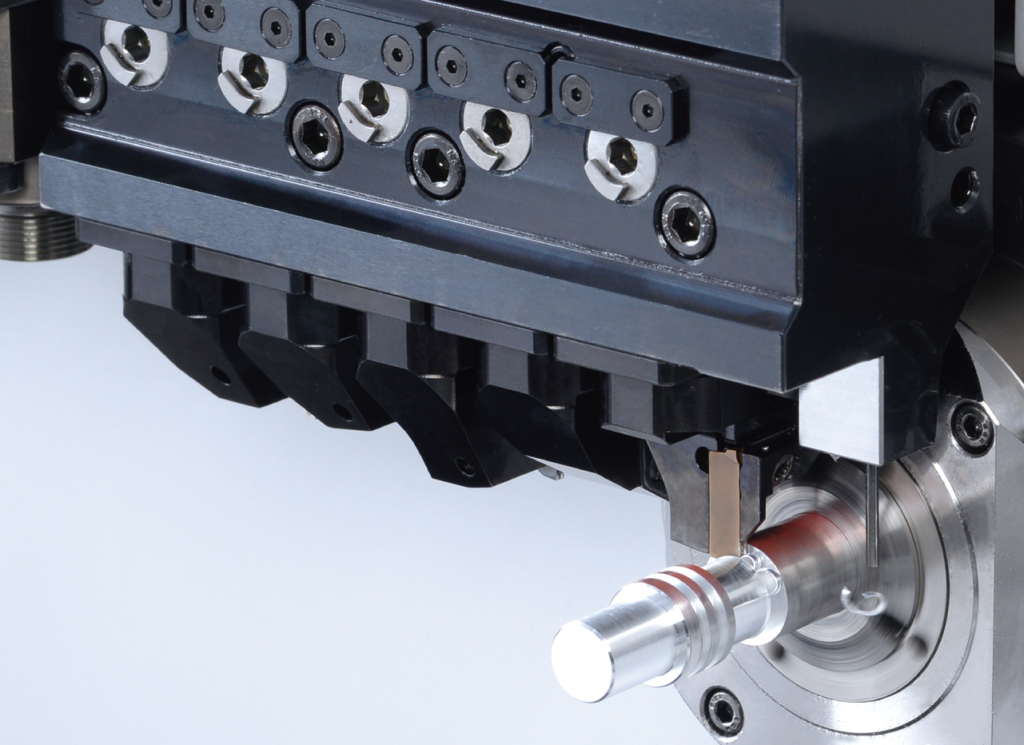

High rigidity for stable and precise machining

Features

Achieve high rigidity and high-precision machining with dedicated tool post
Significantly reduces setup time, contributing to improved productivity

Tooling application

Front turning
Back turning
Grooving
Threading
Cut off

CIToolingSystem

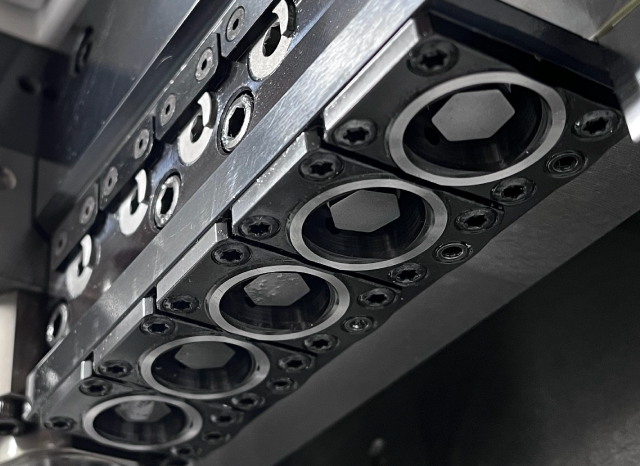

AQ2size Dedicated tool post

Time Reduction

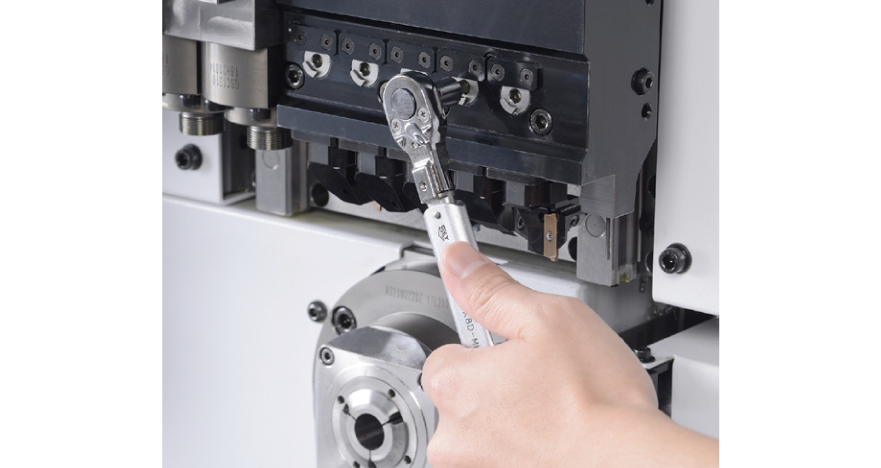

The unique coupling structure allows for quick tool changes with just a half-turn of the wrench. Reduces setup time by approx. 80%, ensuring reliable tool changes.

Repeatability

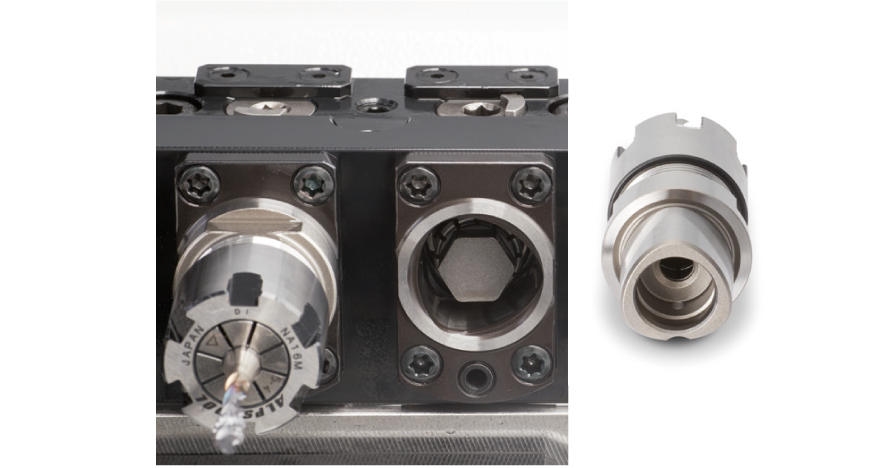

The dual‑contact clamp unit with a polygon taper shank provides strong clamping force and ensures repeatability within ±2 µm.

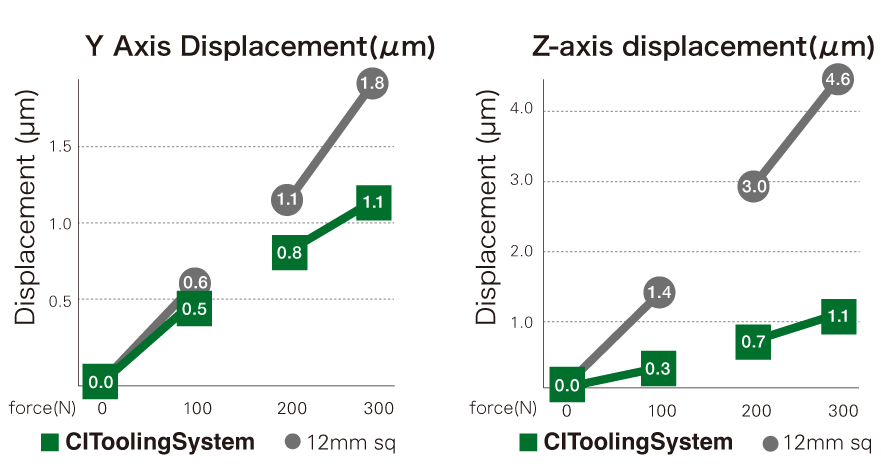

High Rigidity

Despite its compact size, equivalent to a 12mm .4720” square shank toolholder. the N-Swiss CAP system delivers high rigidity that effectively suppresses chatter.
