Engineering Productivity and Process Stability in Cast Iron Machining
As global manufacturing faces continued pressure from raw material volatility and supply chain concentration, machining operations are reassessing how critical tool materials are deployed within their processes.
Tungsten carbide remains indispensable across a wide range of applications. However, its reliance on tungsten — a strategically sensitive raw material — is prompting manufacturers to reconsider where it delivers maximum value and where alternative materials provide distinct technical advantages.
With deep expertise in ceramic material engineering and application development, NTK advances cutting tool performance in demanding environments. In cast iron machining, these engineered ceramic grades represent one of the most robust solutions for high-temperature performance.
Where Ceramics Deliver a Technical Advantage
Cast iron machining generates extreme cutting temperatures, particularly in dry and high-speed environments. Under these conditions, alumina- and silicon-nitride-based ceramics retain hardness and wear resistance beyond conventional carbide limits.
In stable, heat-dominated operations, ceramics enable:
- Higher cutting speeds
- Shorter cycle times
- Consistent abrasive wear in cast iron
- Reliable dry machining performance
These benefits are rooted in material science and validated in production environments where thermal resistance governs tool life.
Strategic Tool Material Allocation
Ceramics are not intended to replace carbide across all operations. Carbide continues to excel in heavy interruptions, unstable setups, and applications requiring maximum edge toughness.
The opportunity lies in identifying operations driven primarily by thermal load rather than mechanical shock. In these conditions, ceramic grades deliver measurable productivity gains, while carbide remains optimal where toughness is critical.
This targeted allocation strengthens process efficiency and reduces reliance on any single tool material.
NTK Ceramic Solutions for Cast Iron
NTK’s ceramic portfolio has been developed specifically for cast iron machining:

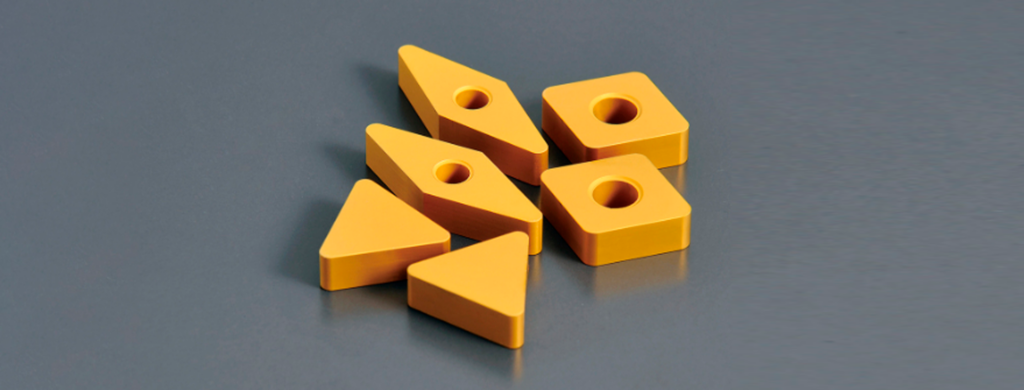

- SP9 – Coated silicon nitride grade supporting roughing to finishing of gray and ductile cast iron
- SX6 – High-toughness silicon nitride ceramic for demanding gray cast iron roughing, including scaled surfaces
- HC1 / HW2 – Alumina-based ceramics optimized for high-speed finishing of gray cast iron
These grades are widely applied in automotive, heavy equipment, pump and valve, and general industrial casting production.
Production case studies demonstrate substantial increases in cutting speed and productivity in components such as wheel hubs and structural housings, where ceramic grades have successfully replaced carbide in selected operations.
Success story (click for more info)
Efficiency at Production Scale
Higher cutting speeds reduce machining time per component and improve spindle utilization in high-volume production. In many cast iron applications, ceramic machining can be performed dry, minimizing or eliminating coolant usage.
Beyond productivity, this approach reduces energy consumption per part and lowers coolant handling and disposal requirements, supporting more resource-efficient manufacturing at scale.
Engineering the Process
The shift toward ceramic tooling in cast iron machining is not substitution, but intelligent application.
Aligning tool material properties with the dominant stresses of each operation — thermal or mechanical — enables a more resilient and performance-driven machining strategy.
Applied under the right conditions, NTK’s advanced ceramic grades elevate productivity while ensuring process stability in demanding cast iron operations.
