B5K/B52

CBN grades for finishing ductile cast iron｜ Coated (B5K) / Un-coated (B52)

Best CBN grades for high-speed finishing of ductile cast iron

Home / Cast Iron - Grade / B5K/B52

High-speed finishing up to Vc=~500m/min 1600 SFM

Achieves highly effective machining even surpassing ceramic

Ductile cast iron
Finish Turning

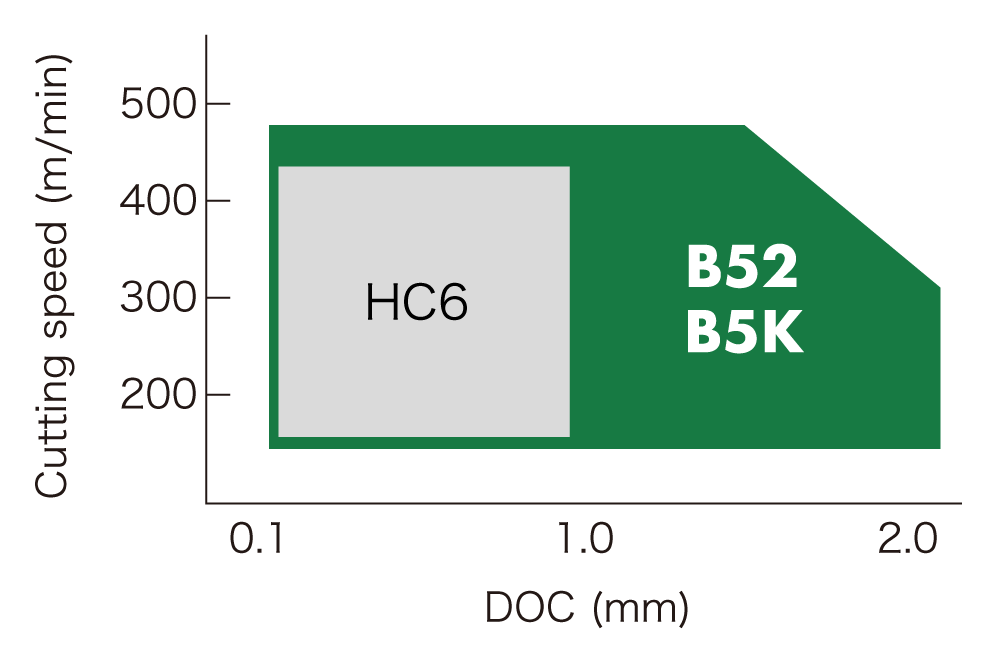

Cutting conditions

- - - Scroll the table - - -

Grade	Material	Operation type	Machining	Cutting speed (m/min) Cutting speed (SFM)	Feed(mm/rev) Feed(IPR)	DOC(mm) DOC(inch)	Coolant
B5K/B52	Ductile cast iron	Turning	Finishing	100 – 500 300 – 1600	0.1 – 0.4 .004 – .016	0.3 – 2.0 .0008”/rev	WET

Case study

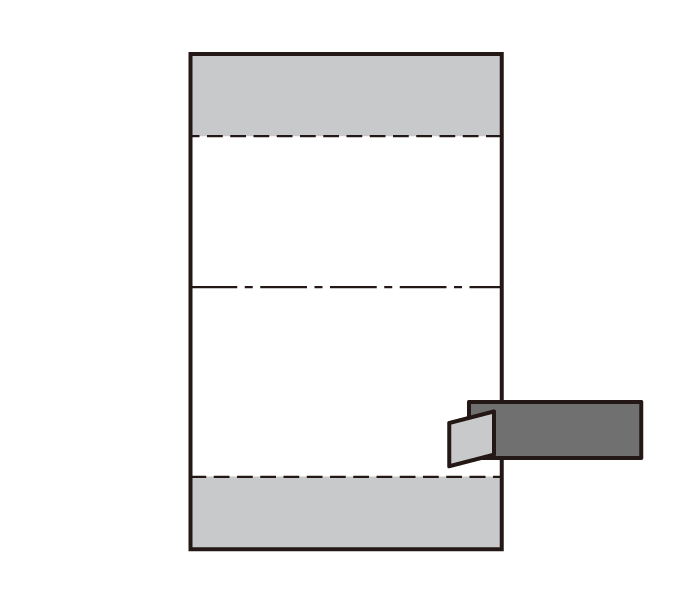

ID bore finishing operation on a machine part
Material : Ductile cast iron (FCD700)
Cutting speed : 200 m/min 670 SFM
Feed : 0.15 mm/rev .0059 IPR
DOC : 0.2 mm .0079 inch
Coolant : WET
B5K	12 pcs / corner
Competitor’s CBN	6 pcs / corner

The B5K insert was 3 times more productive than the competitor’s insert.

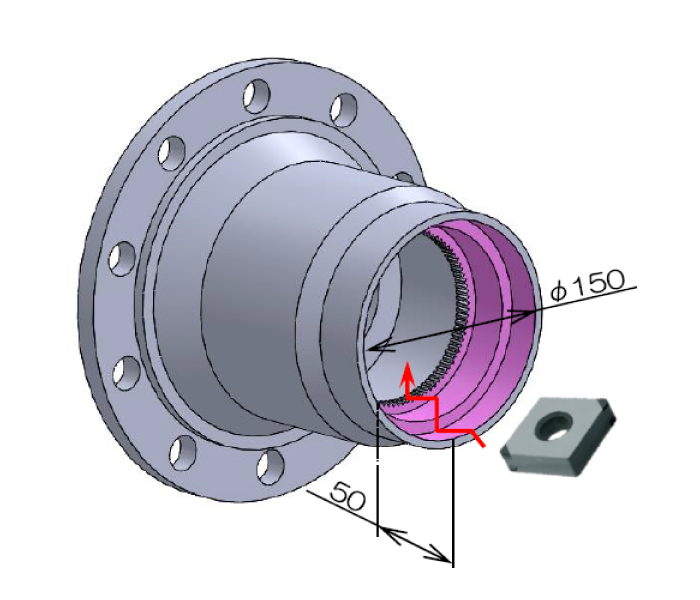

Front hub
Material : Ductile cast iron (FCD450)
Cutting speed : 230 m/min 770 SFM
Feed : 0.16 mm/rev .0063 IPR
DOC : 0.25 mm .0098 inch
Coolant : WET
B52	50 pcs / corner
Competitor’s CBN	20 pcs / corner

B52 achieved 1.6 times the tool life compared to competitor’s CBN.

April 23, 2025

As brake disc machining evolves, NTK’s ceramic solutions deliver higher speeds, longer tool life, and ...

For more information about this product, visit our online e-catalog, or download the catalog/product report
