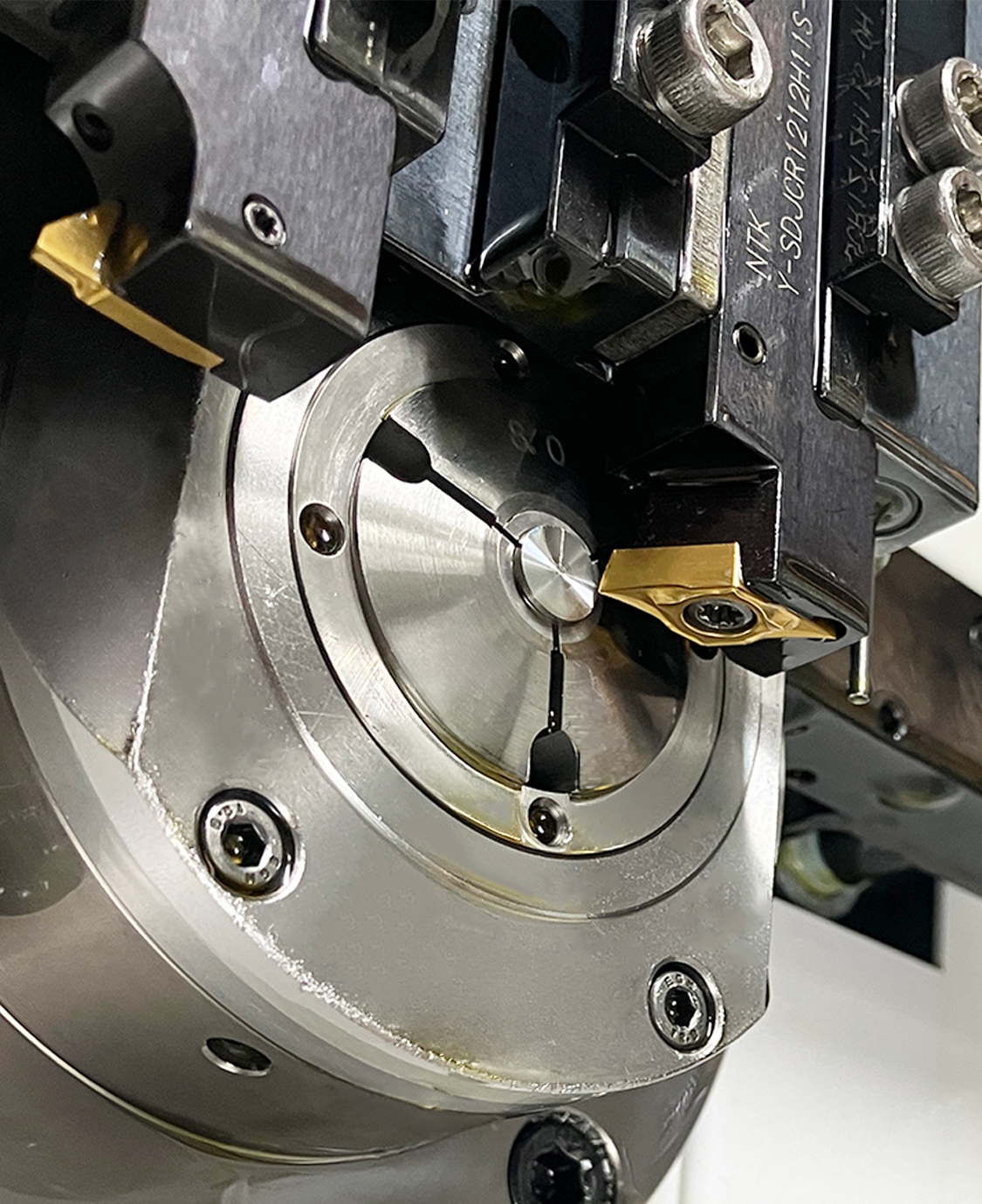

For turning small parts | Y-axis holder + KM1 Insert
Automatic lathe (Gang type) machining plastic materials (PEEK/PTFE, etc.)

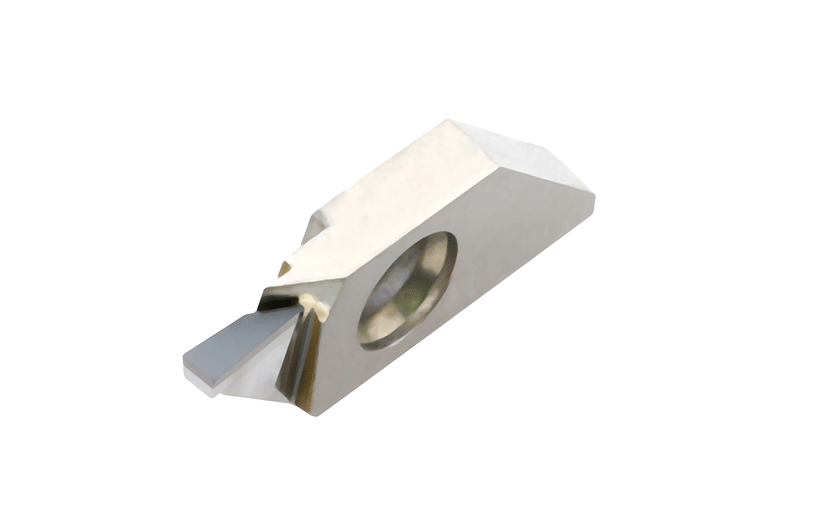

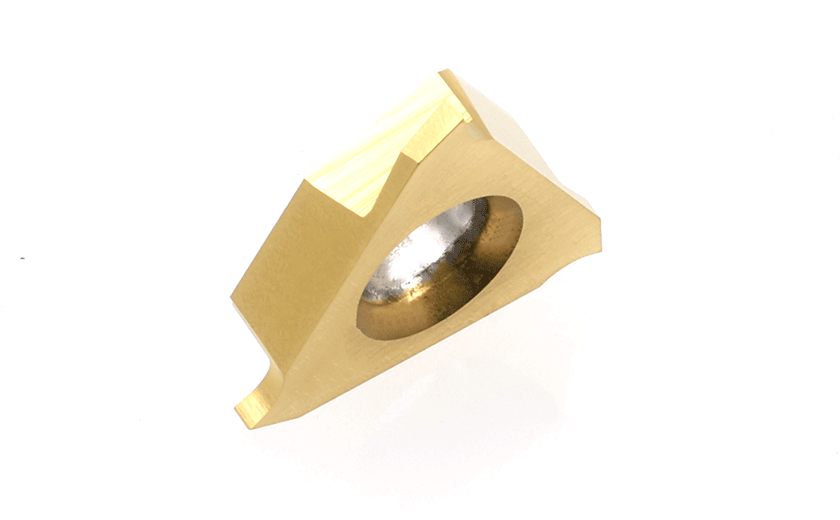

Front turning (ISO) / Back turning / Grooving / Cut-off / Threading / Boring
Excellent surface finish using an insert featuring an up-sharp edge and polished mirror-finish for welding resistance.
[ Cutting condition ]
Material : PEEK(⌀10)
vc=80m/min f=0.05mm/rev ap=1.00mm
267 SFM .002 IPR .039 DOC
| ISO | Work material | Coolant | Grade | vc (m/min) (SFM) | ap (mm) (inch) | f (mm/rev) (IPR) |
|---|---|---|---|---|---|---|
 |
Plastic (PEEK,PTFE,etc.) Rough-Finish Turning |
DRY + Air | KM1 | 50 – 150 164 – 490 | 0.5 – 3.0 .020 – .118 | 0.05 – 0.10 .002 -.004 |
| Medical implant | |
|---|---|
|
PEEK |
|
100 328 |
|
0.06 .0023 |
|
2.50 .010 |
|
NTK：AIR Competitor：DRY |

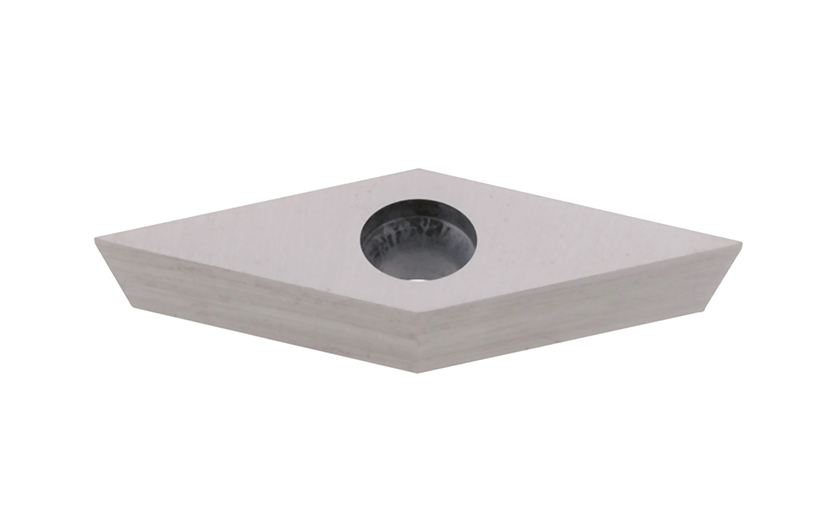

| KM1 VCGT11T302H No chipbreaker |
80 pcs / corner
|
| Carbide VCGT11T302 Molded chipbreaker |
40 pcs / corner
|
| Automotive component | |
|---|---|
|
PEEK (with glass fiber) |
|
NTK：120
NTK：394
Competitor：40 Competitor：131 |
|
NTK：0.08
NTK：.003
Competitor：0.05 Competitor：.002 |
|
0.25 .010 |
|
NTK：AIR Competitor：DRY |
| KM1 DCGT11T302H No chipbreaker |
3 pcs / corner
|
| PVD Carbide VNMG160408 Molded chipbreaker |
1 pcs / corner
|
