Swiss CNC lathe back turning

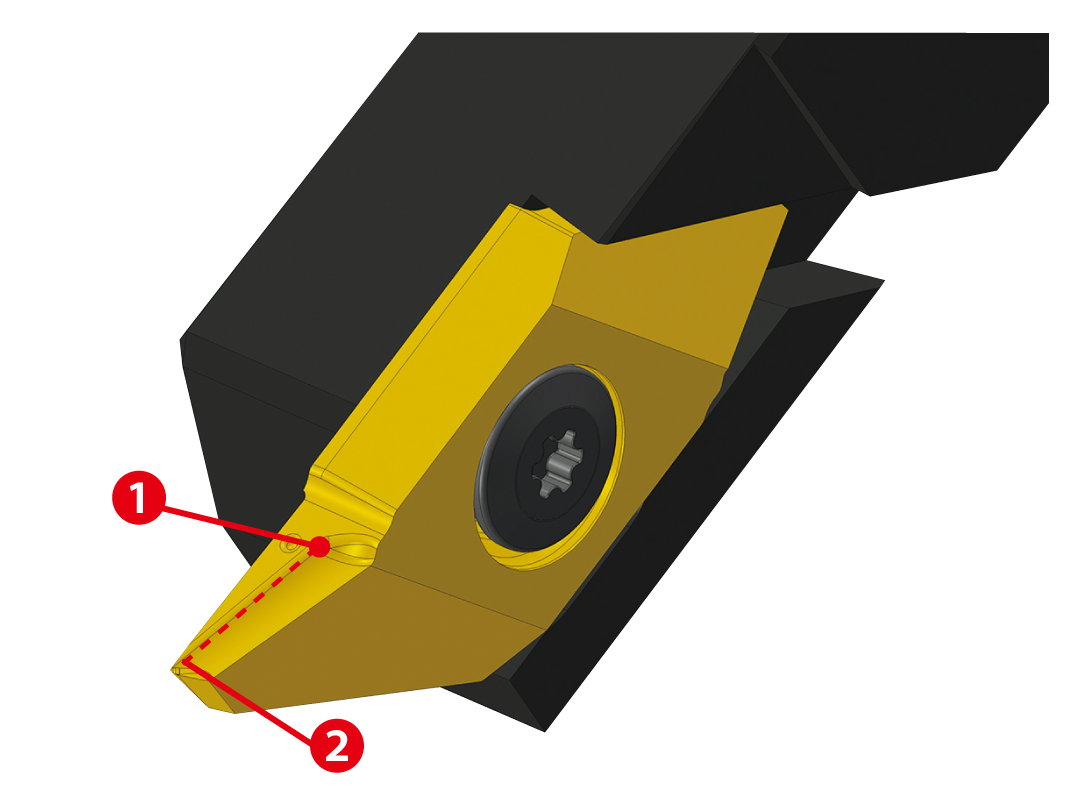

① Prevents the chip from damaging the shoulder feature on the part

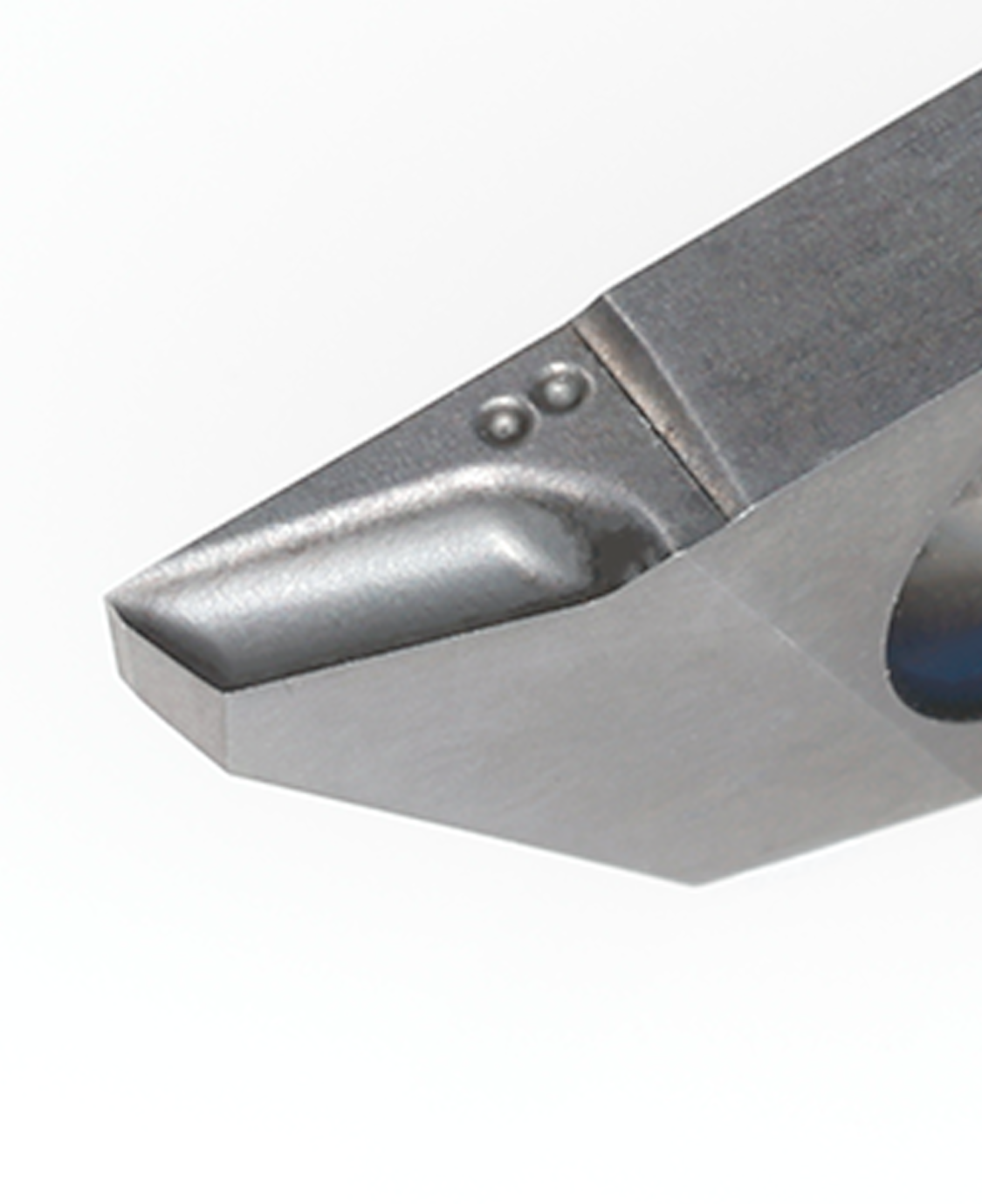

② Wiper flat feature generates excellent surface finish
[ Cutting conditions ]
Material :
SUS304 ⌀16 vc=80m/min f (x)=0.02mm/rev f (z)=0.08mm/rev ap=3.0mm
WET
[ Tools used ]

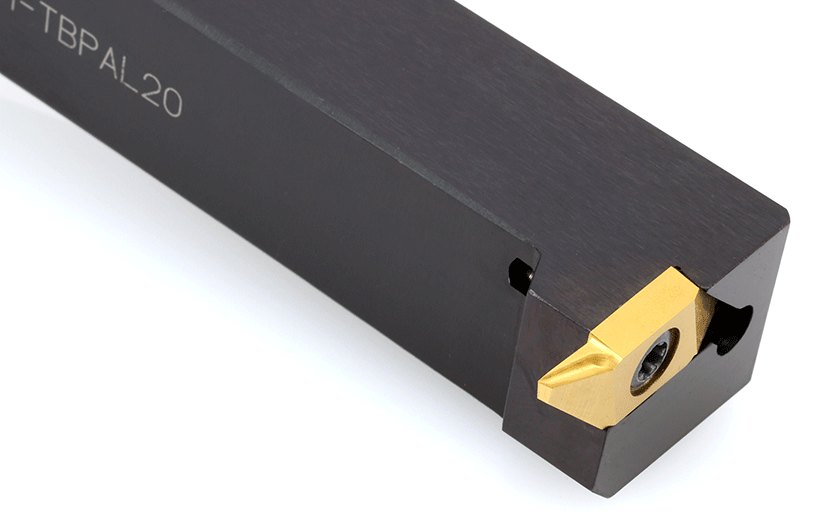

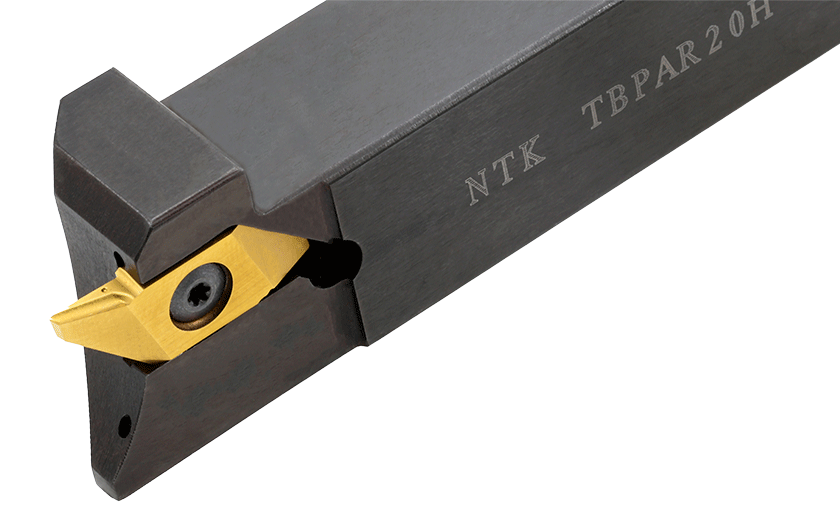

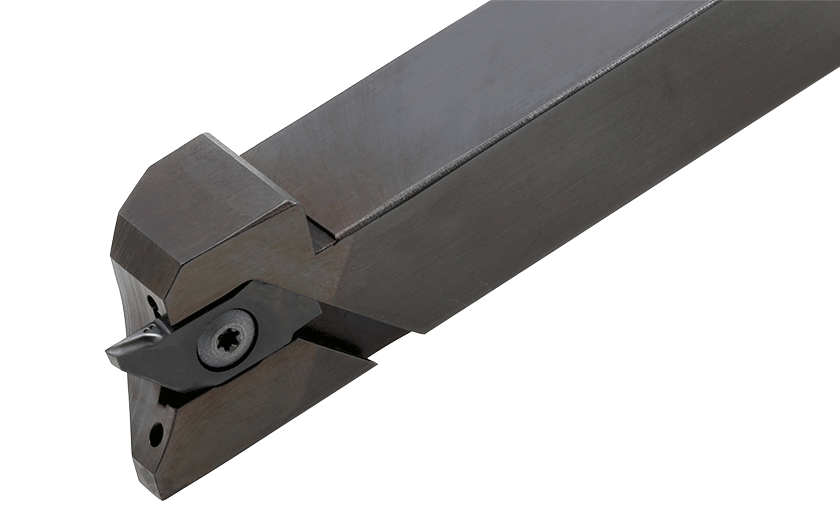

Holder : TBPR12 Insert : TM4 TBP72FR10M-BM
| ISO | Work material | Grade | vc (m/min) (SFM) | ap (mm) (inch) | f (mm/rev) (IPR) | ||
|---|---|---|---|---|---|---|---|
| TBP-BM | TBPA-BM | X Direction | Z Direction | ||||
 |
Carbon steel Alloy steel |
DM4 | 30 – 120 75 – 500 | 0.5 – 3.5 .020 – .209 | 0.5 – 5.5 .020 – .256 | 0.01 – 0.03 .0004 – .0016 | 0.03 – 0.08 .0008 – .0031 |
 |
Stainless | ST4 | 50 – 120 100 – 275 | 0.5 – 3.5 .020 – .209 | 0.5 – 5.5 .020 – .256 | 0.01 – 0.03 .0004 – .0012 | 0.03 – 0.04 .0008 – .0016 |
| Difficult-to-cut material | DM4 | 30 – 120 75 – 500 | 0.01 – 0.03 .0004 – .0016 | 0.03 – 0.08 .0008 – .0031 | |||
 |
Titanium alloy High temp alloys | DM4 | 30 – 120 75 – 500 | 0.5 – 3.5 .020 – .209 | 0.5 – 5.5 .020 – .256 | 0.01 – 0.03 .0004 – .0016 | 0.03 – 0.08 .0008 – .0031 |
 |
Hardened material | DM4 | 30 – 120 75 – 500 | 0.5 – 3.5 .020 – .209 | 0.5 – 5.5 .020 – .256 | 0.01 – 0.03 .0004 – .0016 | 0.03 – 0.08 .0008 – .0031 |
 |
Non-ferrous Aluminum Plastic General purpose | TM4 | 50 – 180 150 – 500 | 0.5 – 3.5 .020 – .209 | 0.5 – 5.5 .020 – .256 | 0.01 – 0.03 .0004 – .0016 | 0.03 – 0.08 .0008 – .0031 |
| Stud | |
|---|---|
|
 |
|
|
|
|
|
|
| TBP-BM | ①1 pass machining * no extra operations required |
| Competitor’s product | ①Roughing – grooving operations ②Finishing – back turn operation |
The current process required 2 steps to complete the part feature.

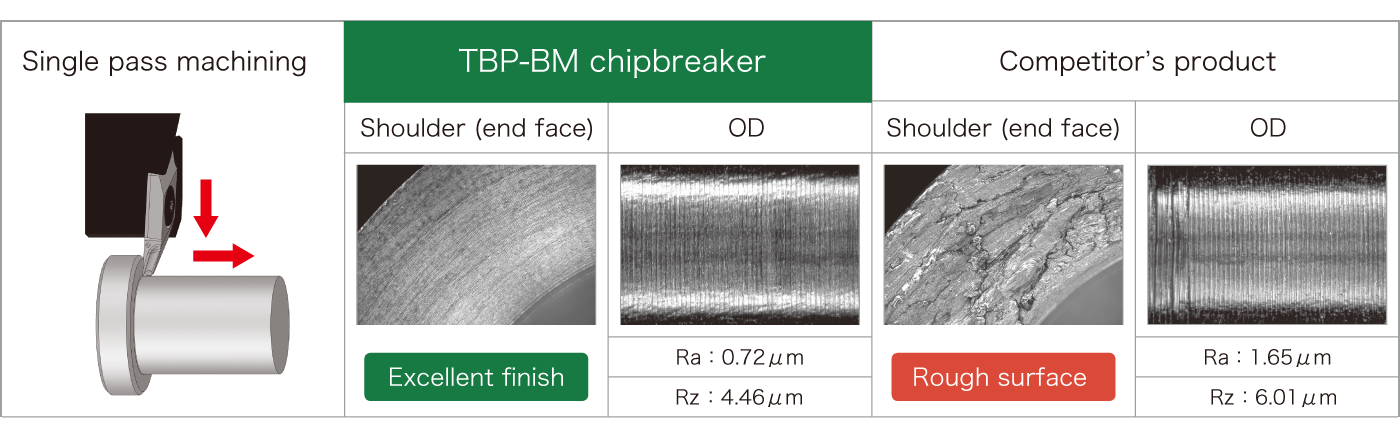

NTK’s BM chipbreaker achieved shortened cycle time with a single pass operation .
High quality finish on the OD and shoulder due to the chipbreaker design which evacuates chips away from the part
