For cut-off operations for diameters up to 16mm｜ Swiss CNC lathes
Swiss CNC lathe Cut-off operations

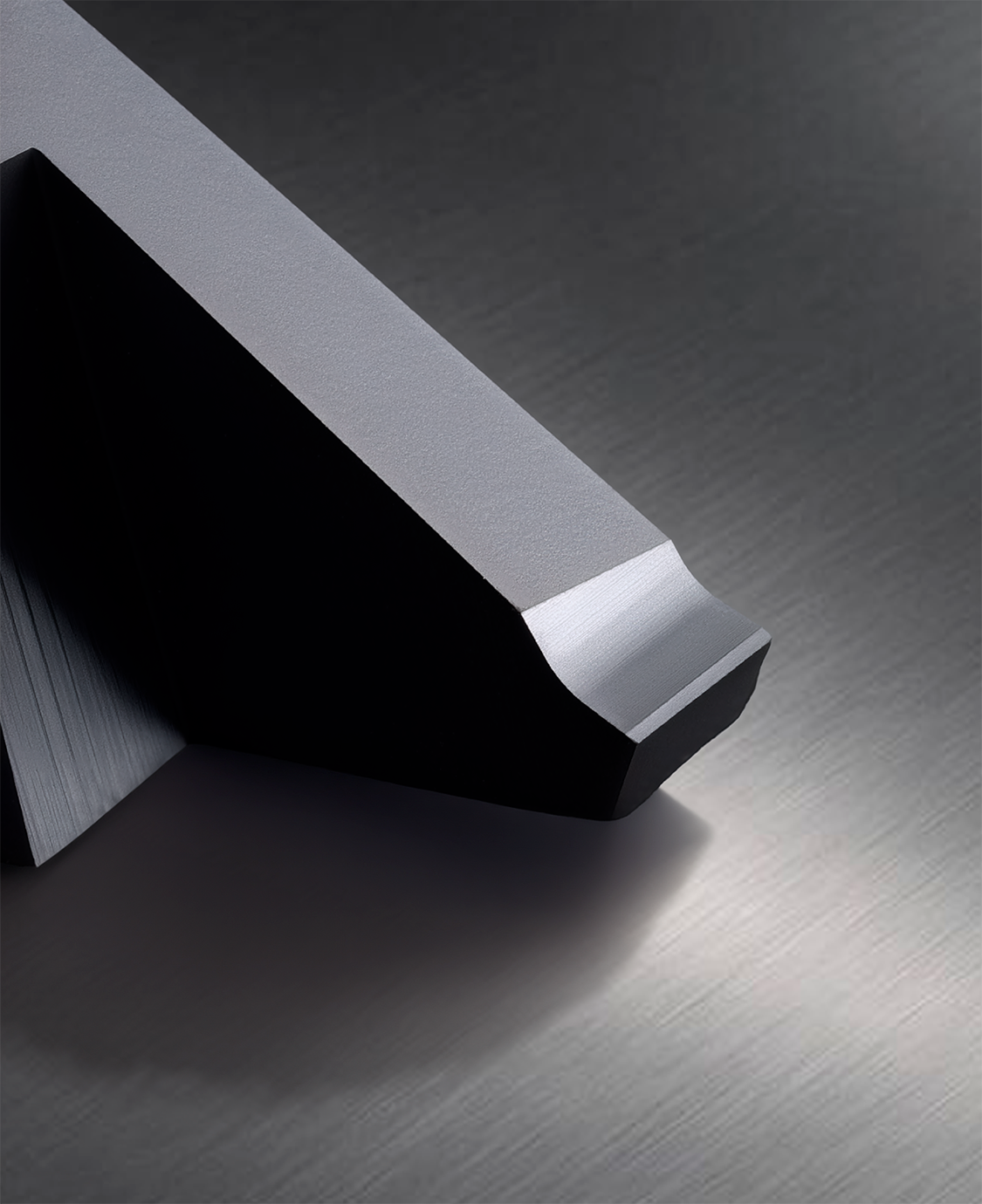

Cutting edge with land feature and sharpness improves insert strength
[ Cutting conditions ]
Material :
SUS304 ⌀11 mm vc = 80m/min f (x) = 0.03mm/rev
304SS ⌀.433 inches 270 SFM f (x) = .001 IPR
[ Tools used ]

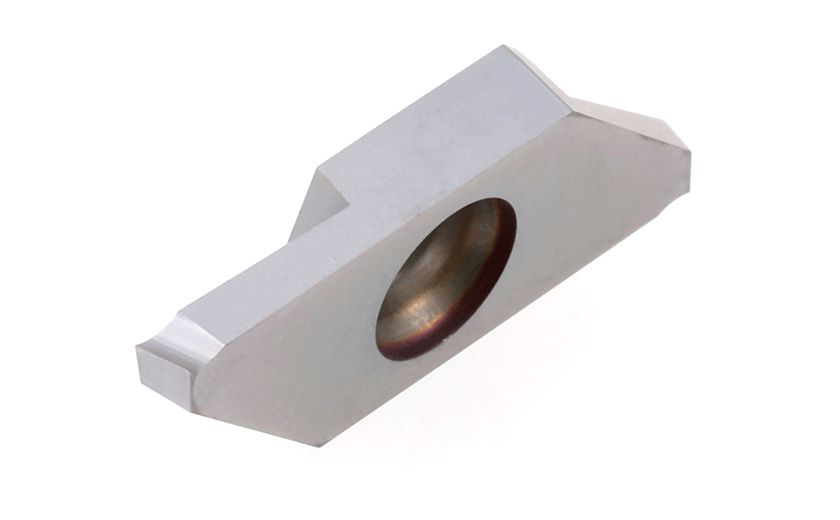

Insert : CTP-TH
2.0mm
.079 inch
width Holder : CTPR12
| Maximum cut-off diamter | ||||||
| Coated grade | Material | Operation type | Cutting speed (m/min) Cutting speed (SFM) | Feed (mm/rev) Feed (IPR) | CTP type | CTPA type |
|---|---|---|---|---|---|---|
| ST4 | Stainless | Cut off | 30 – 150 100 – 500 | 0.02 – 0.07 .0008”/rev | φ12 φ.472” | φ16 φ.630” |
| Bearing | |
|---|---|
|
 |
|
|
|
|
|
|
| TH chipbreaker ST4 CTP15FR-TH |
30,000 pcs / corner
|
| Competitor’s wiper insert (PVD coated carbide) |
20,000 pcs / corner |

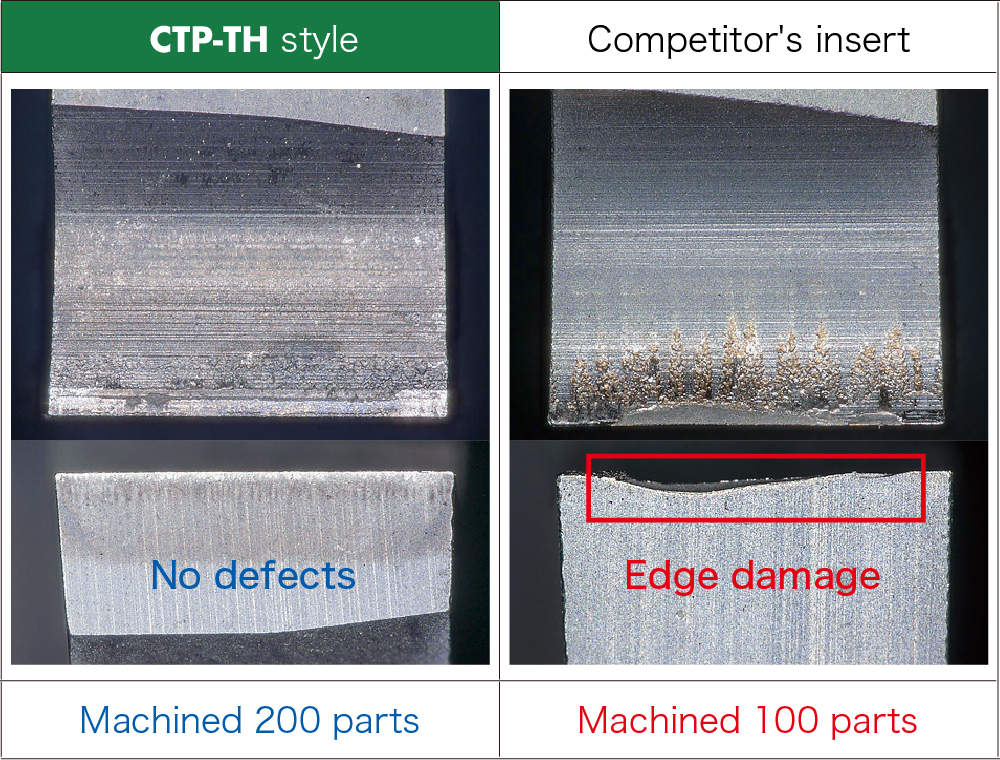

TH chipbreaker achieved stable machining by preventing insert edge chipping.
The ST4 grade, specializing in machining stainless steel, extended tool life by 1.5 times compared to competitor’s insert.
For more information about this product, visit our online e-catalog, or download the catalog/product report
