N-Swiss JOINT Modular Type

Modular Type | Quick-change tool series for automatic lathes

Reduce tool change and setup time

Home / Tooling Systems / N-Swiss JOINT Modular Type

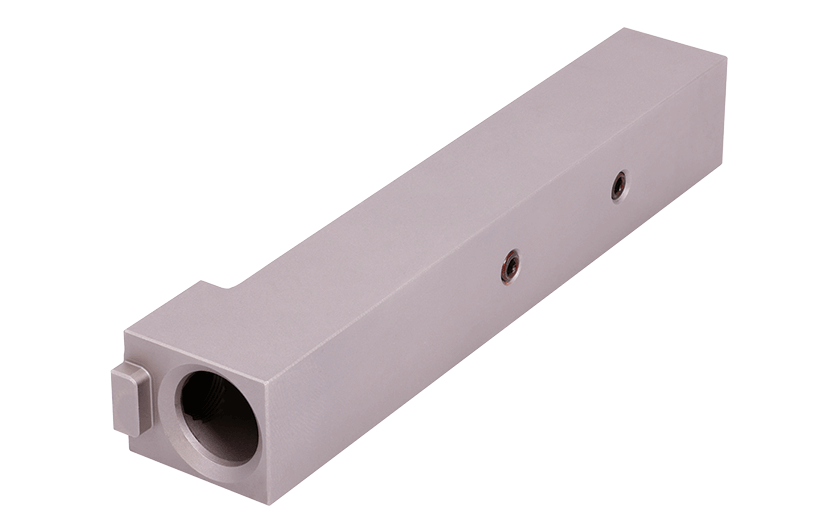

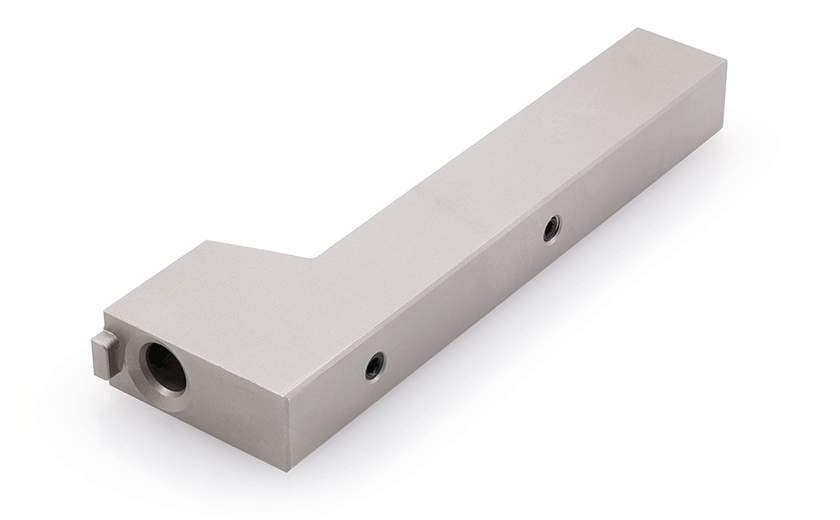

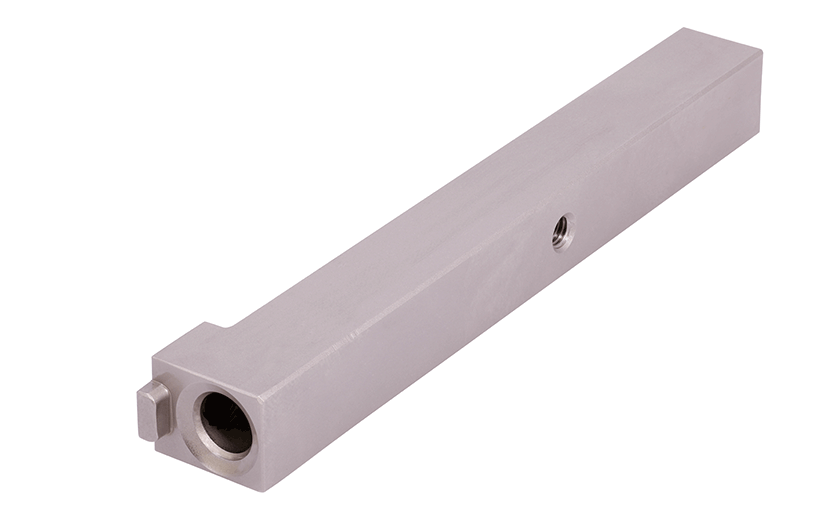

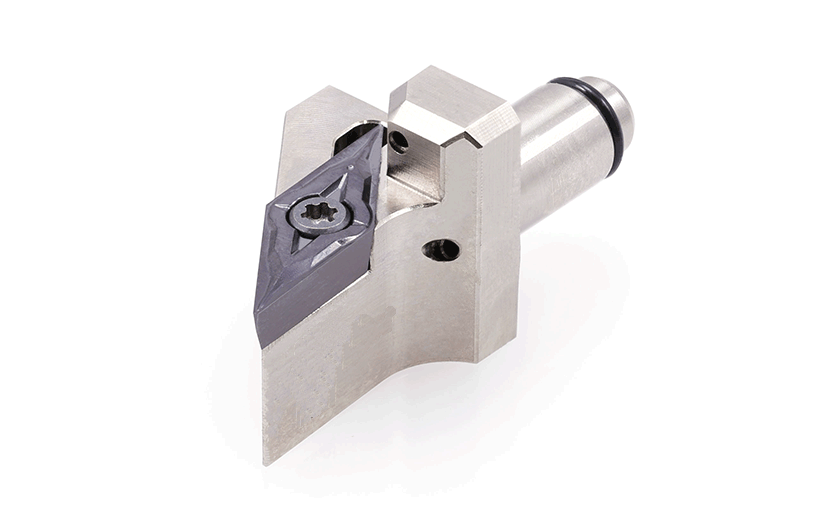

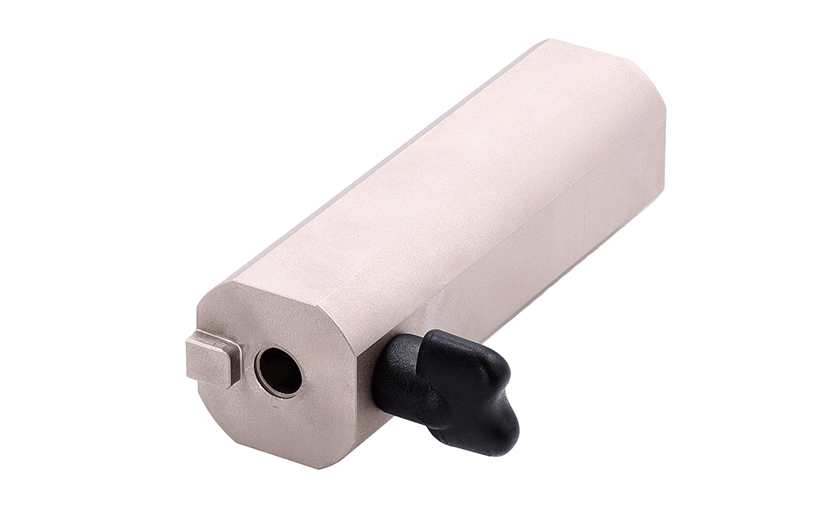

All application heads can be mounted on the same shank and shared.

The wide range of uses significantly improves work efficiency.

The user-friendly mechanism ensures precise repeatability, allowing anyone to achieve consistent performance effortlessly.

*The head, shank, and insert corner are identical during measurement.

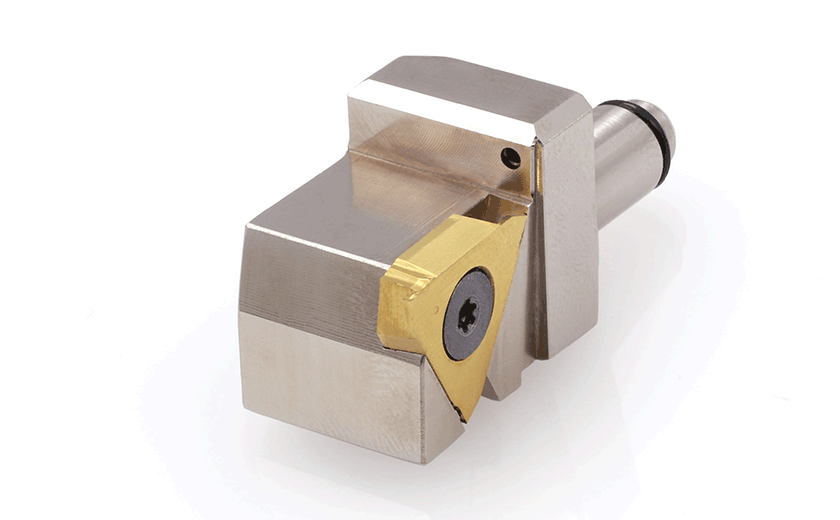

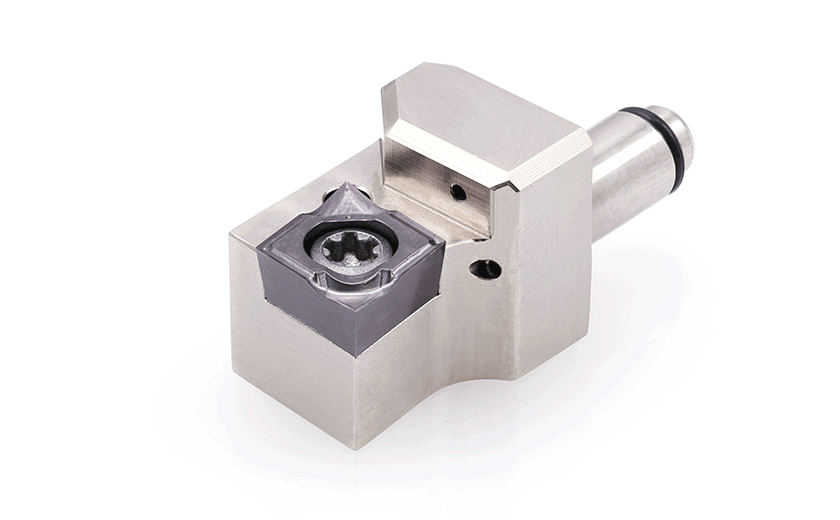

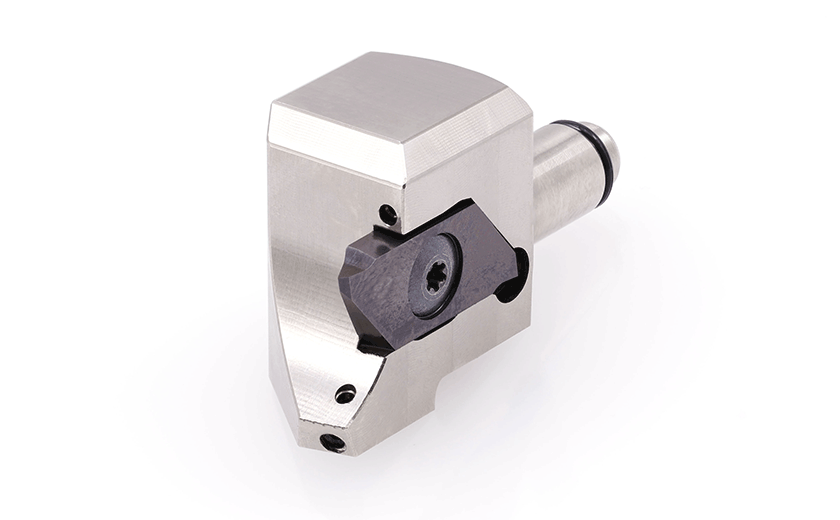

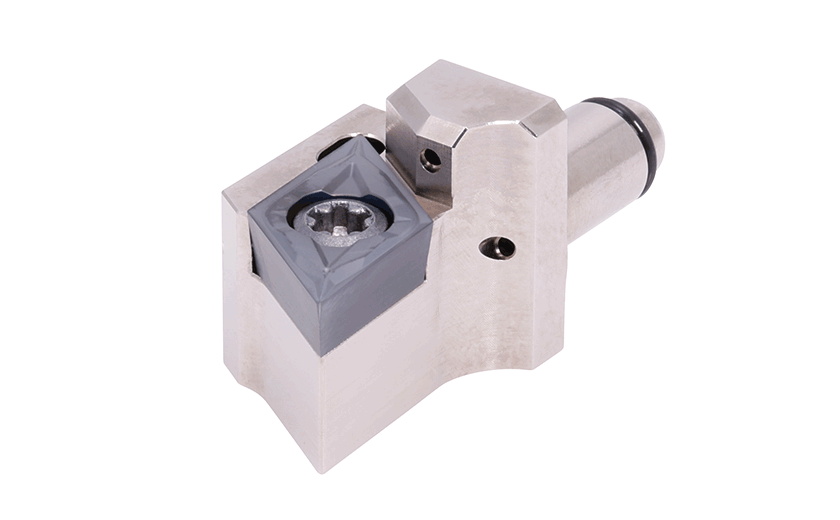

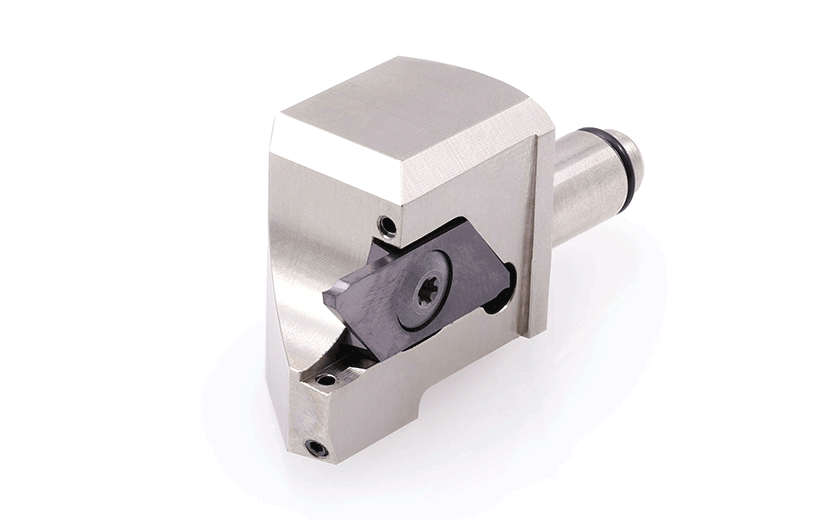

Front turning / Back turning / Grooving / Threading / Cut off

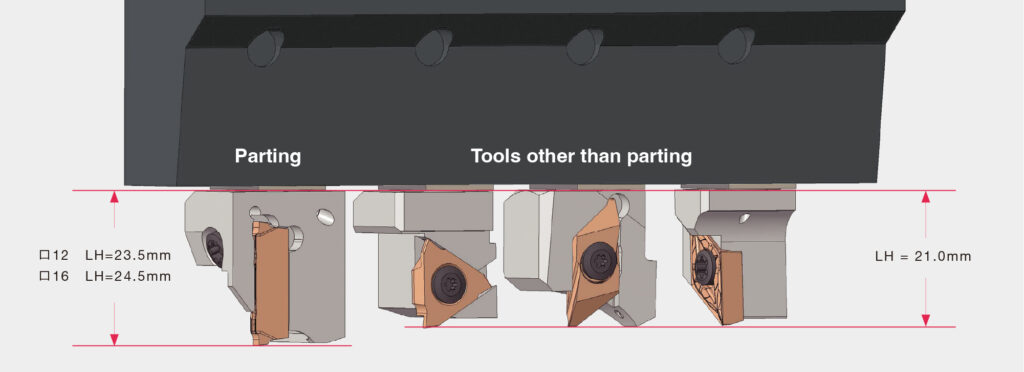

All modular heads are standardized to have the same cutting edge position, ensuring consistency. (Shank dimensions and specifications may vary for parting and other specialized tools.)

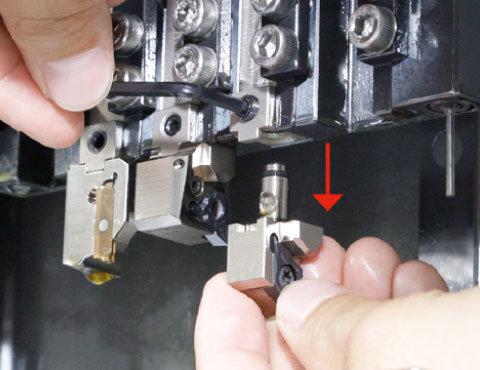

Attachment / Detachment Method

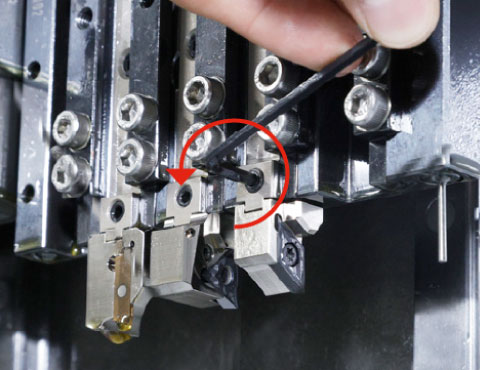

①Loosen the screw.

②The head can be removed without fully detaching the screw.

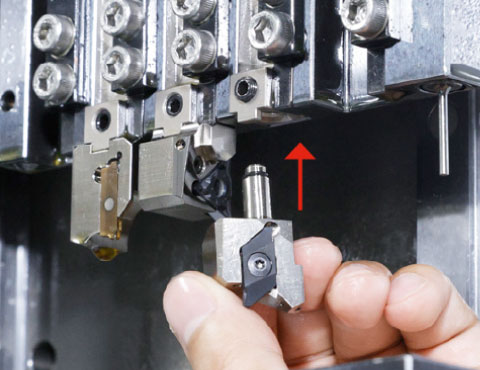

③Insert the head with the replaced insert.

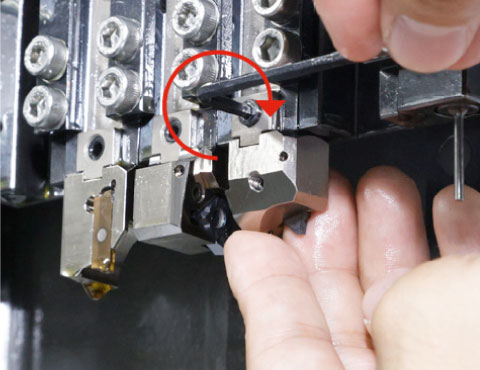

④Tighten the screw on the side while holding the head.

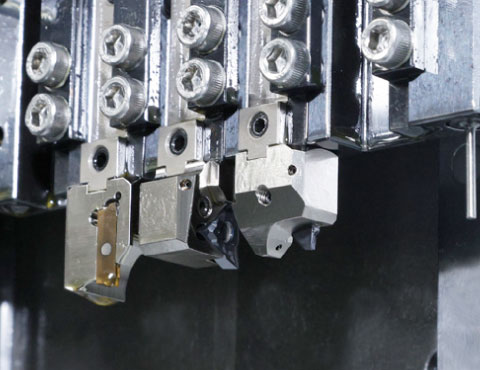

⑤Tool replacement completed.

For more information about this product, visit our online e-catalog, or download the catalog/product report
