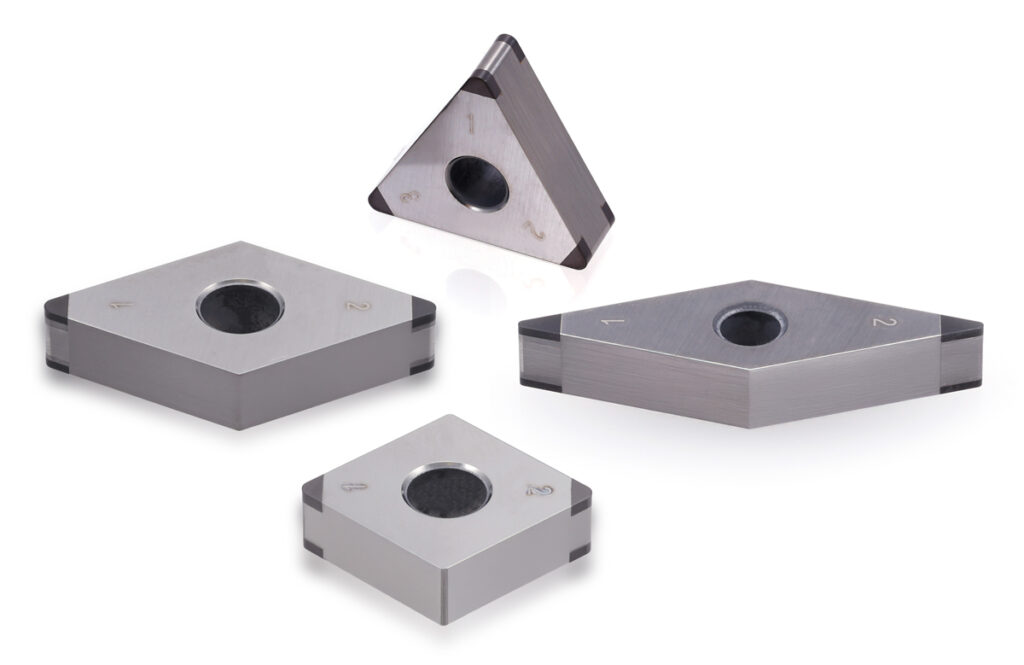

For turning Cast iron and Sintered powder alloy metals ｜ Uncoated CBN
Cast iron – Finishing
Sintered powder metal
Ductile cast iron – Finishing
High CBN content provides stable wear resistance in high-speed turning of Gray cast iron and sintered alloys.
Fine particle size provides excellent edge sharpness and is effective in suppressing burrs.

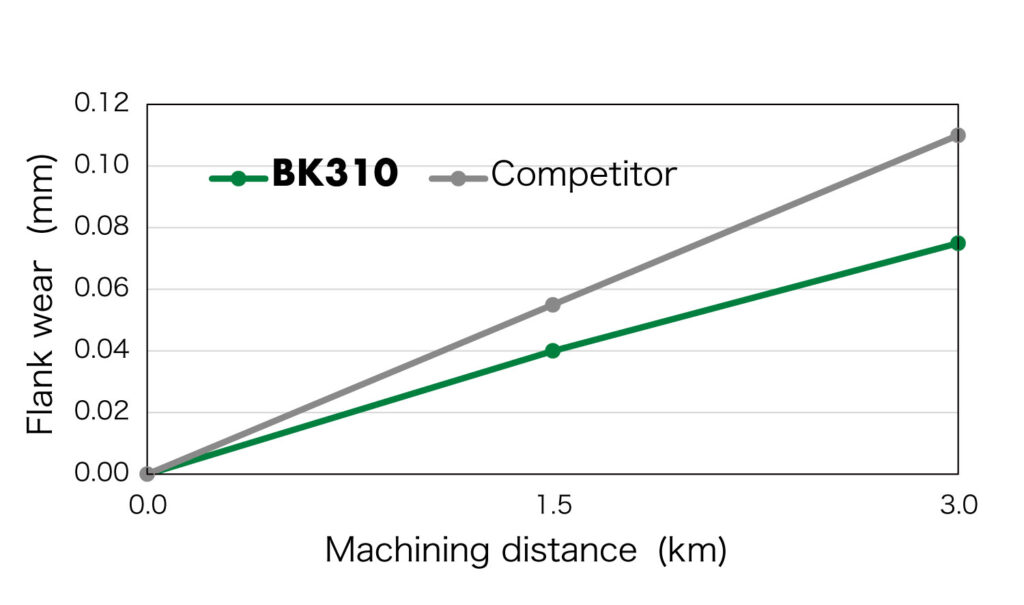

| BK310 | Competitor |
|---|---|
 |
 |
Gray cast iron (FC300)
vc =
500m/min
1600 SFM
, f =
0.3mm/rev
.012 IPR
, ap =
0.3mm
.012” DOC
,

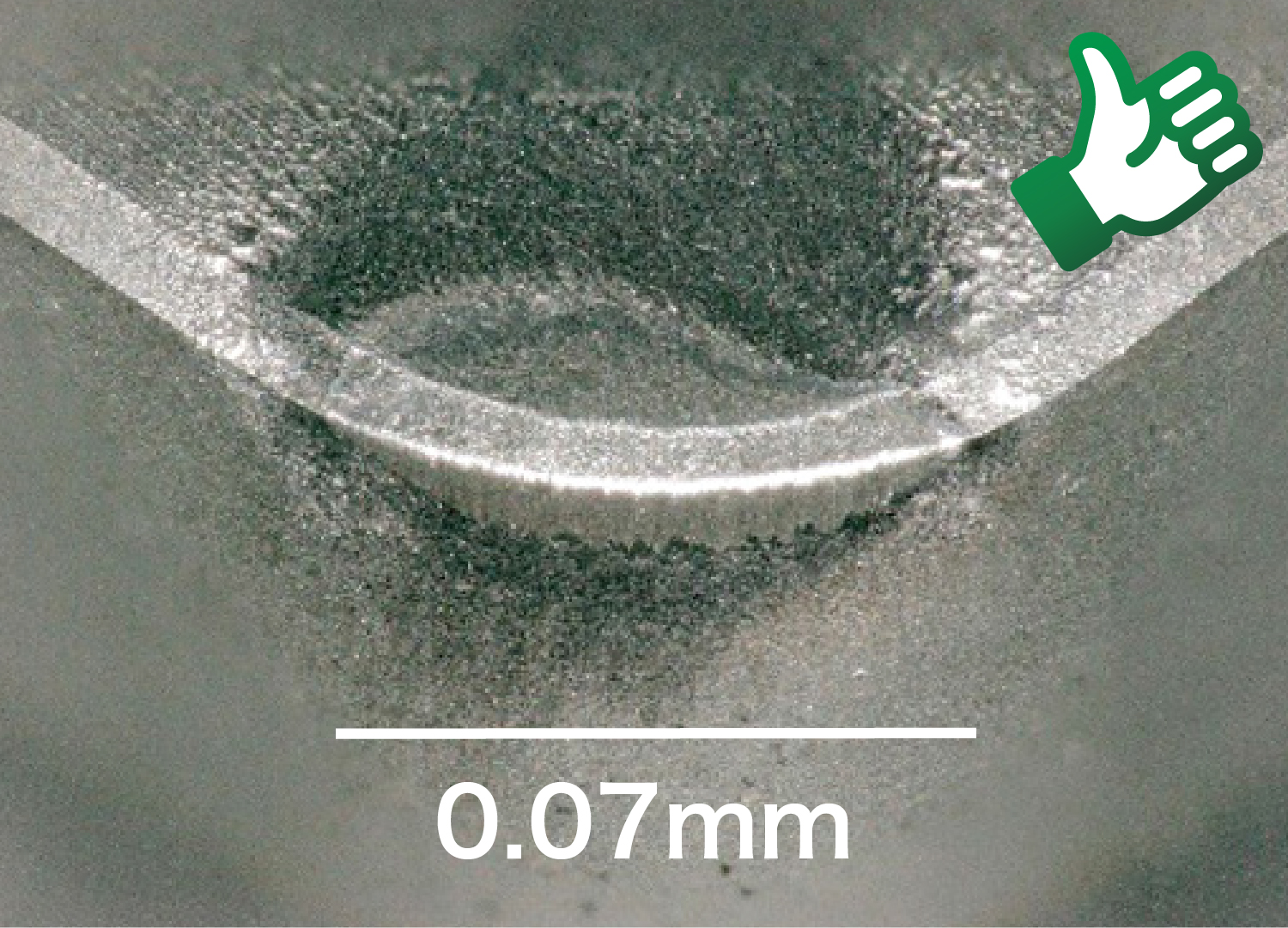

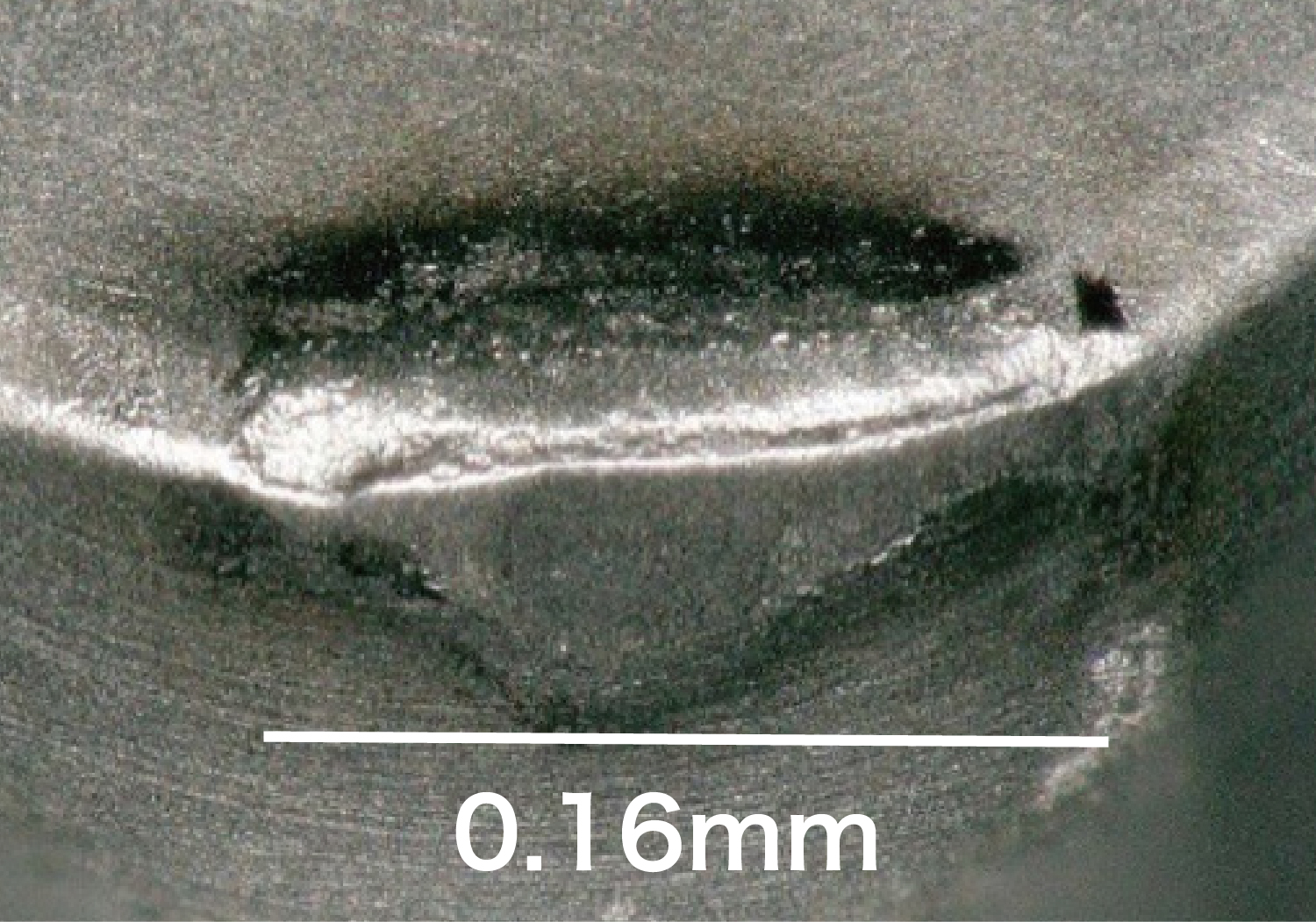

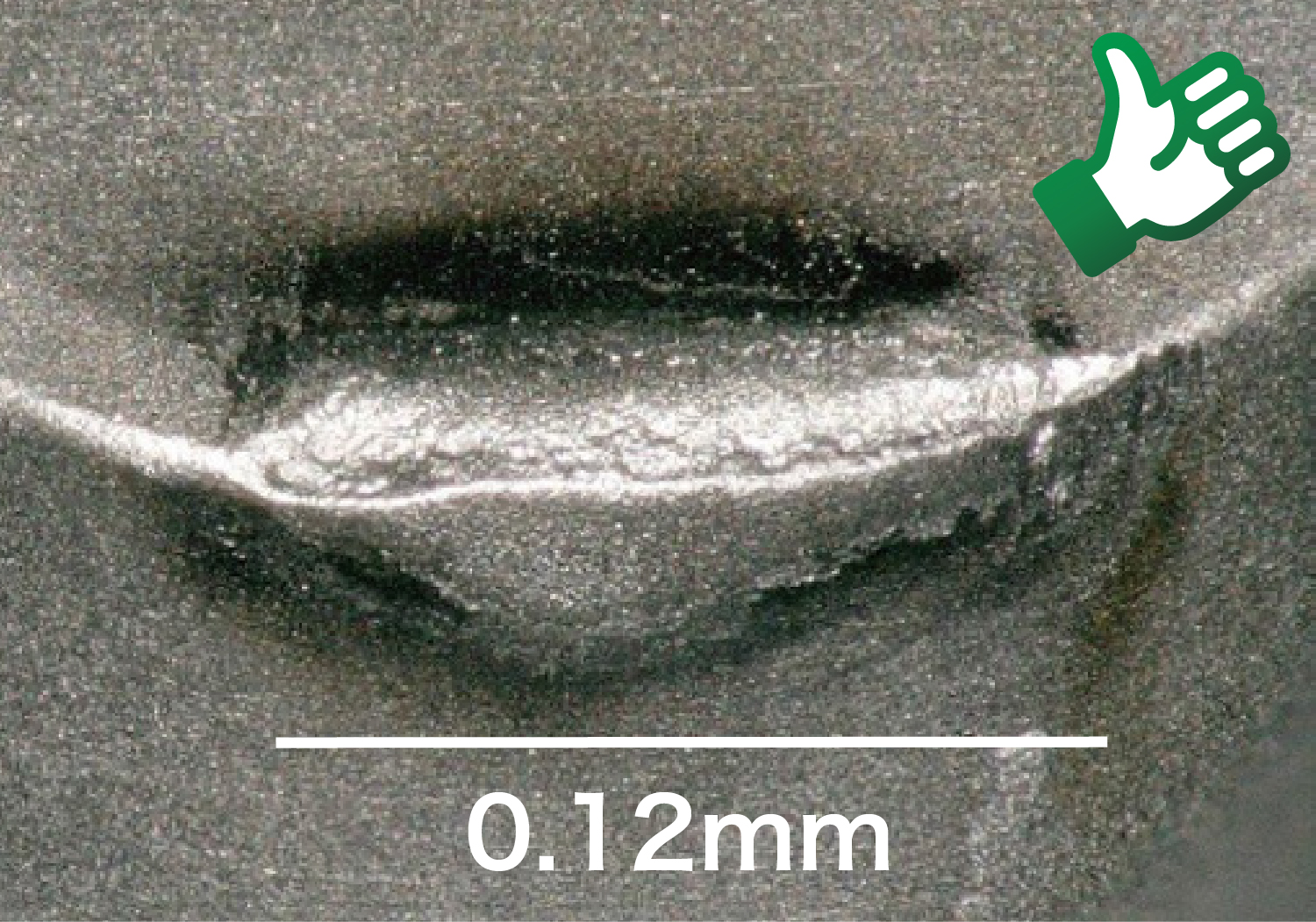

After processing
3Km
120000”
General-purpose material with excellent wear resistance and chipping resistance compared to ductile cast iron for continuous to heavy interrupted use.

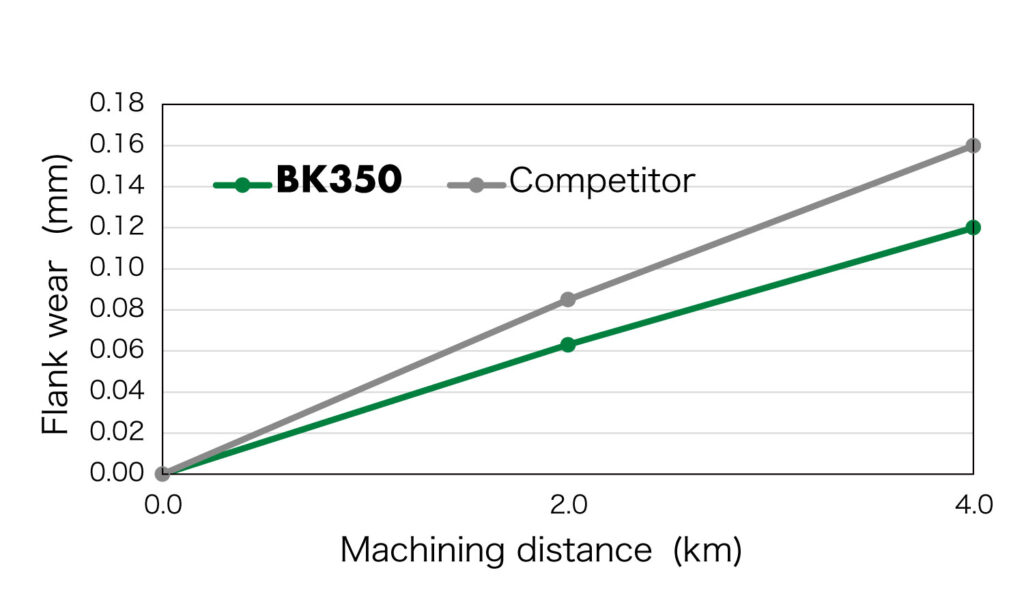

| BK350 | Competitor |
|---|---|
 |
 |
Ductile cast iron (FCD600)
vc =
300m/min
1000 SFM
, f =
0.1mm/rev
.004 IPR
, ap =
0.2mm
.008” DOC
,

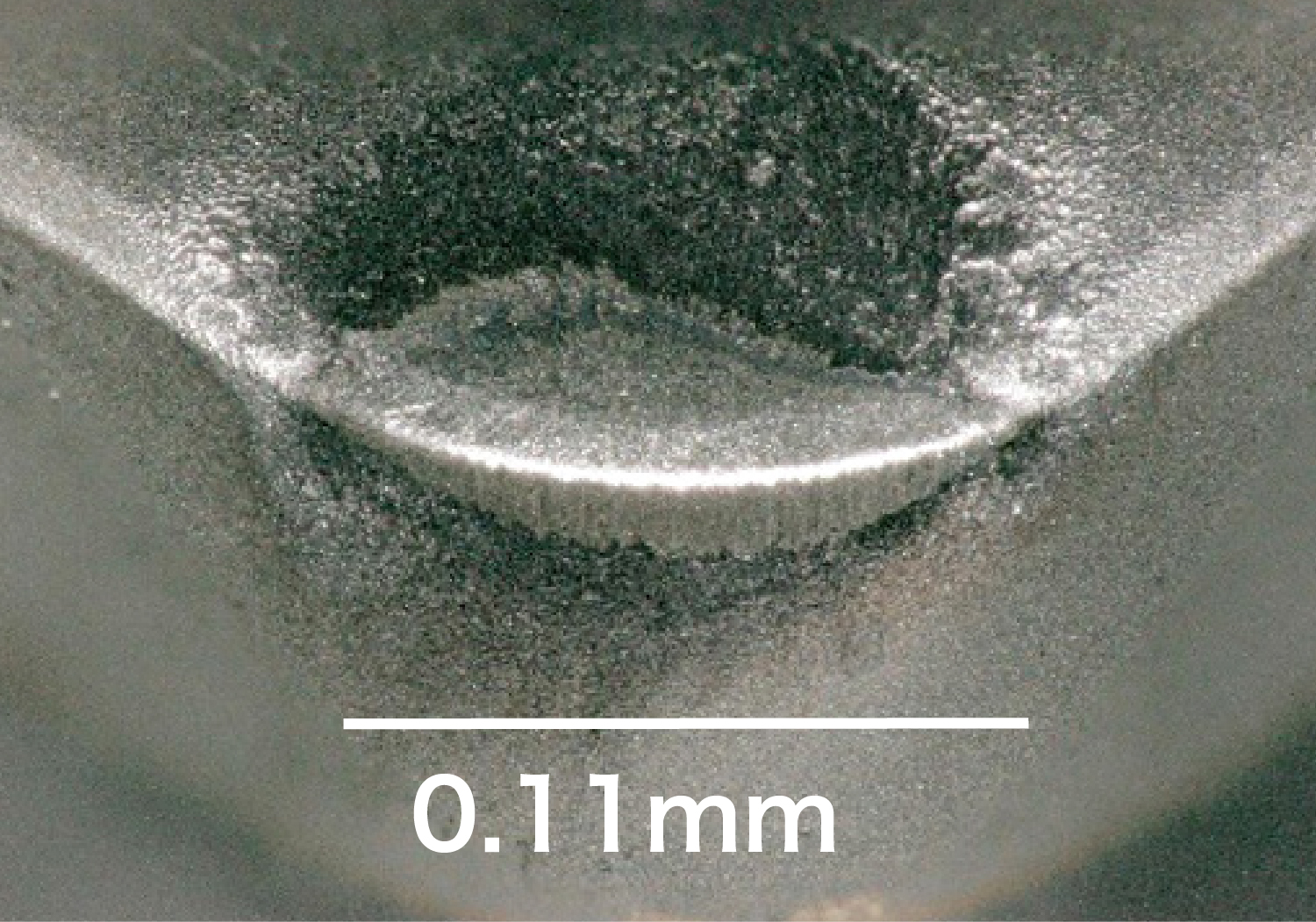

After processing
4Km
160000”

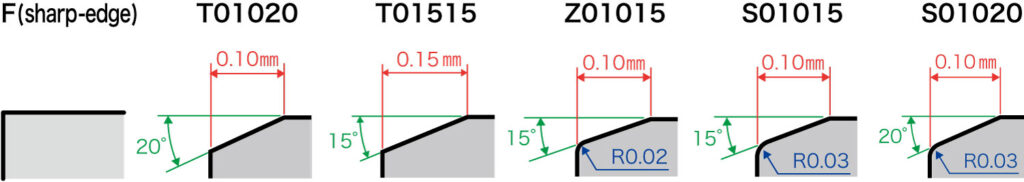

← Sharpness
Toughness →
| ISO | Work material | Coolant | Grade | vc (m/min) (SFM) | ap (mm) (inch) | f (mm/rev) (IPR) |
|---|---|---|---|---|---|---|
 |

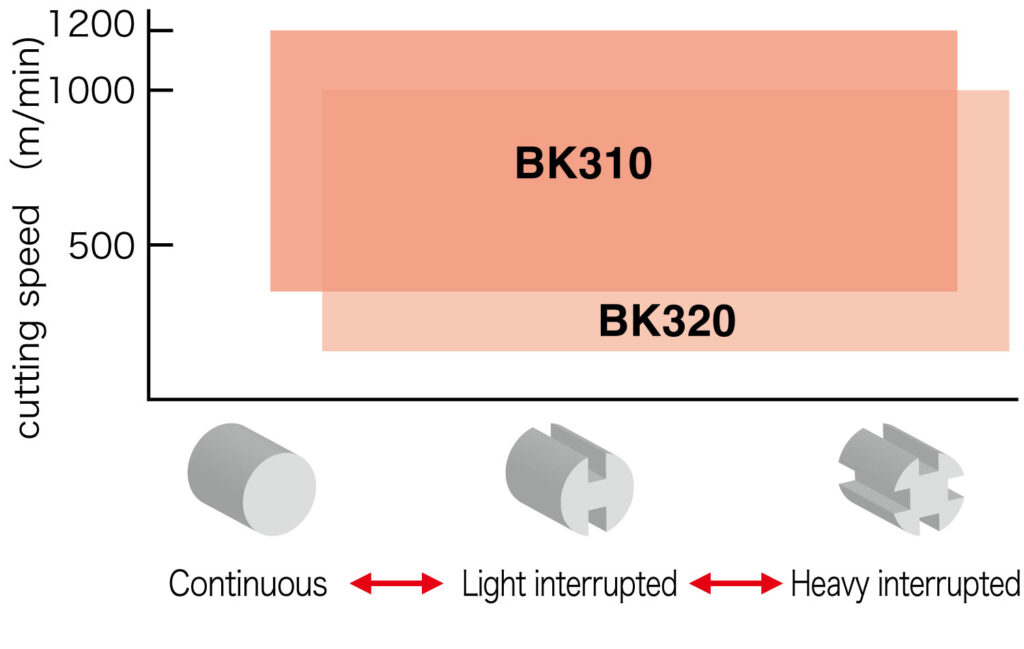

Cast Iron Finish Turning |
WET | BK310 BK320 |
400 – 1200 1300 – 4000 | – 2.0 – .080 | – 0.5 – .020 |

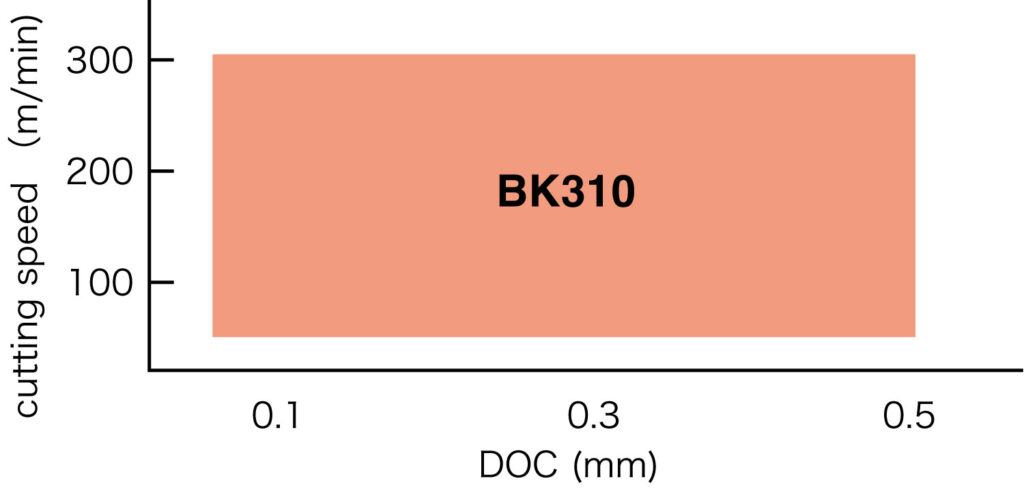

| Sinterd alloy Finish Turning |
BK310 | 40 – 300 130 – 1000 | – 0.5 – .020 | – 0.5 – .020 | ||

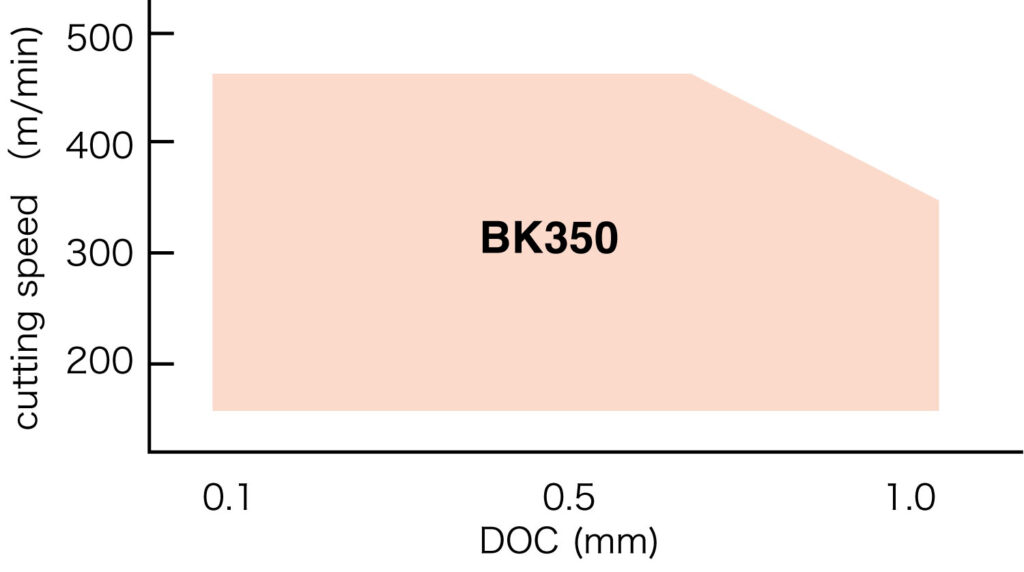

| Ductile Finish Turning |
DRY | BK350 | 100 – 450 300 – 1500 | – 1.0 – .040 | – 0.4 – .016 |

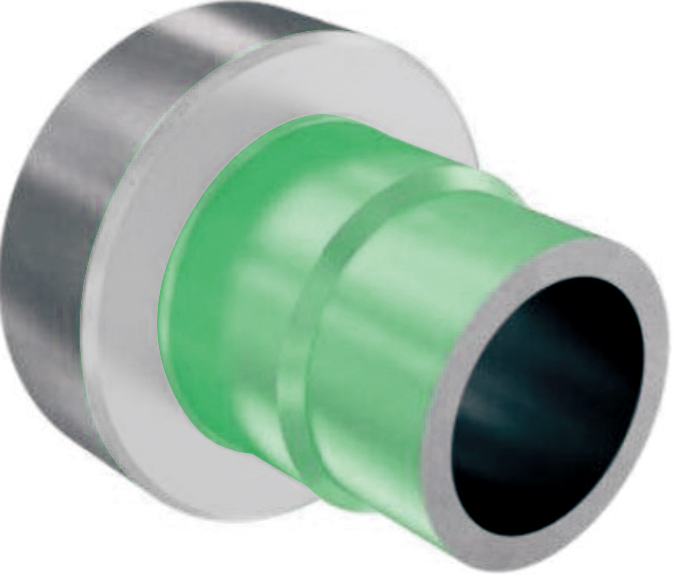

| Agriculture Parts | ||
|---|---|---|
|
 |
|
|
||
|
||
|
||
|
||
|
||
| BK310 |
150 pcs / corner
|
|
| Competitor’s CBN |
100 pcs / corner
|
|
Conventional CBN would experience chattering at the corners and reach the end of their tool life, but BK310 maintains its sharpness and achieved 1.5 times longer tool life.

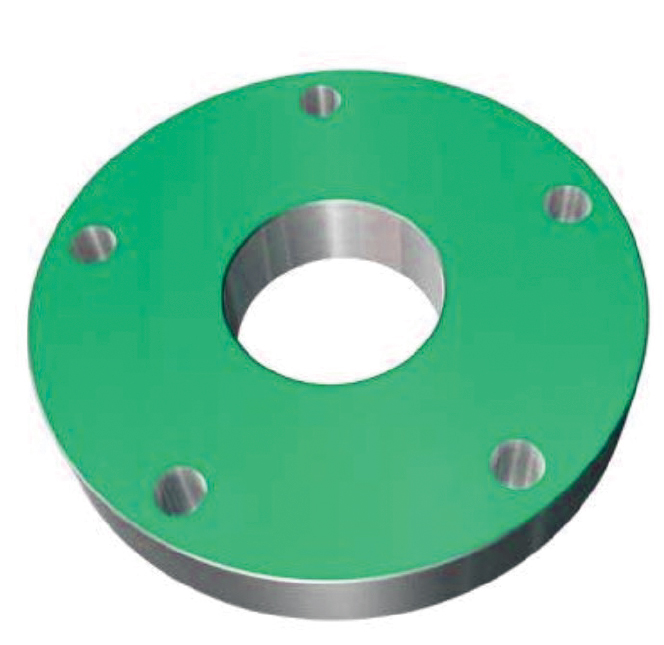

| Machinery parts | ||
|---|---|---|
|
 |
|
|
||
|
||
|
||
|
||
|
||
| BK350 |
100 pcs / corner
|
|
| Competitor’s CBN |
50 pcs / corner
|
|
Conventional CBN develop burrs in the hole and reach the end of its tool life, but BK350 maintains its sharpness and achieves twice the tool life.
For more information about this product, visit our online e-catalog, or download the catalog/product report
