TMV Chipbreaker

For Front Turning ｜ Vibration / Oscillation & Conventional cutting Dual-Purpose Chipbreaker

Advanced Chipbreaker Design for Reliable Performance & Longer Tool Life

Home / Front & Back Turning / TMV Chipbreaker

Reliably long tool life and stable chip evacuation during vibration cutting

Designed for maximum performance in vibration cutting, the TMV cutting tool ensures stability and efficiency. Its optimized geometry minimizes cutting resistance and enhances chip control, making it the ideal choice for challenging applications.

Features

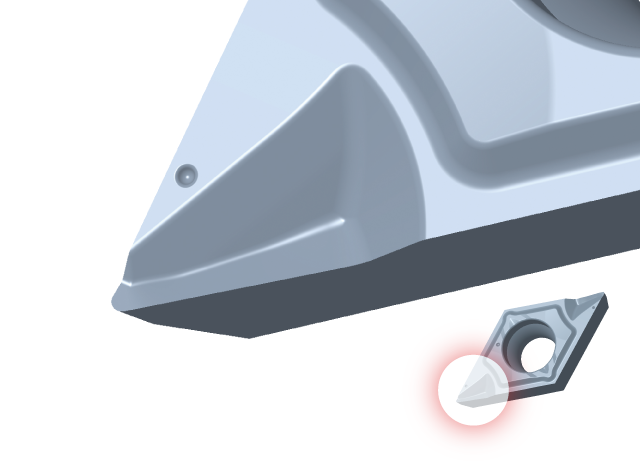

Wiper insert has been added to the lineup for broader use

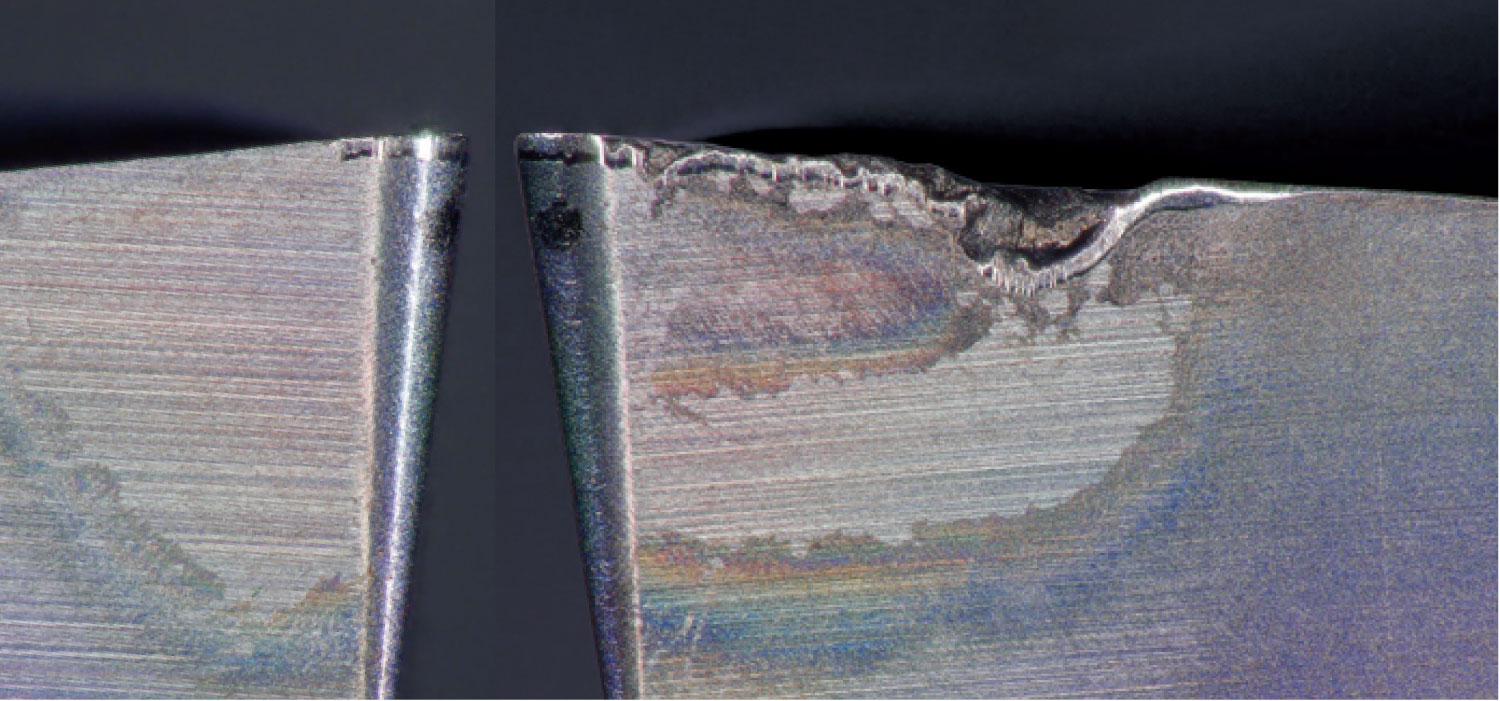

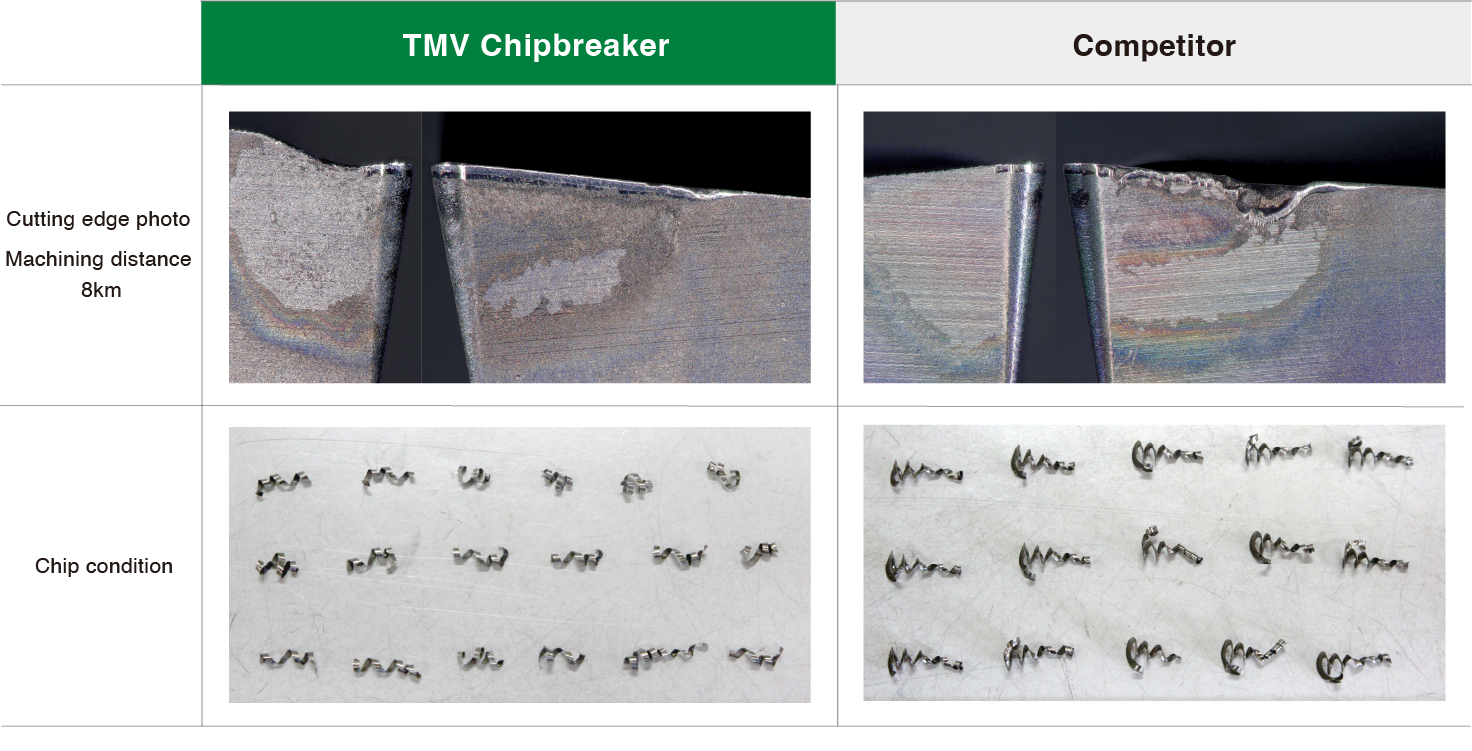

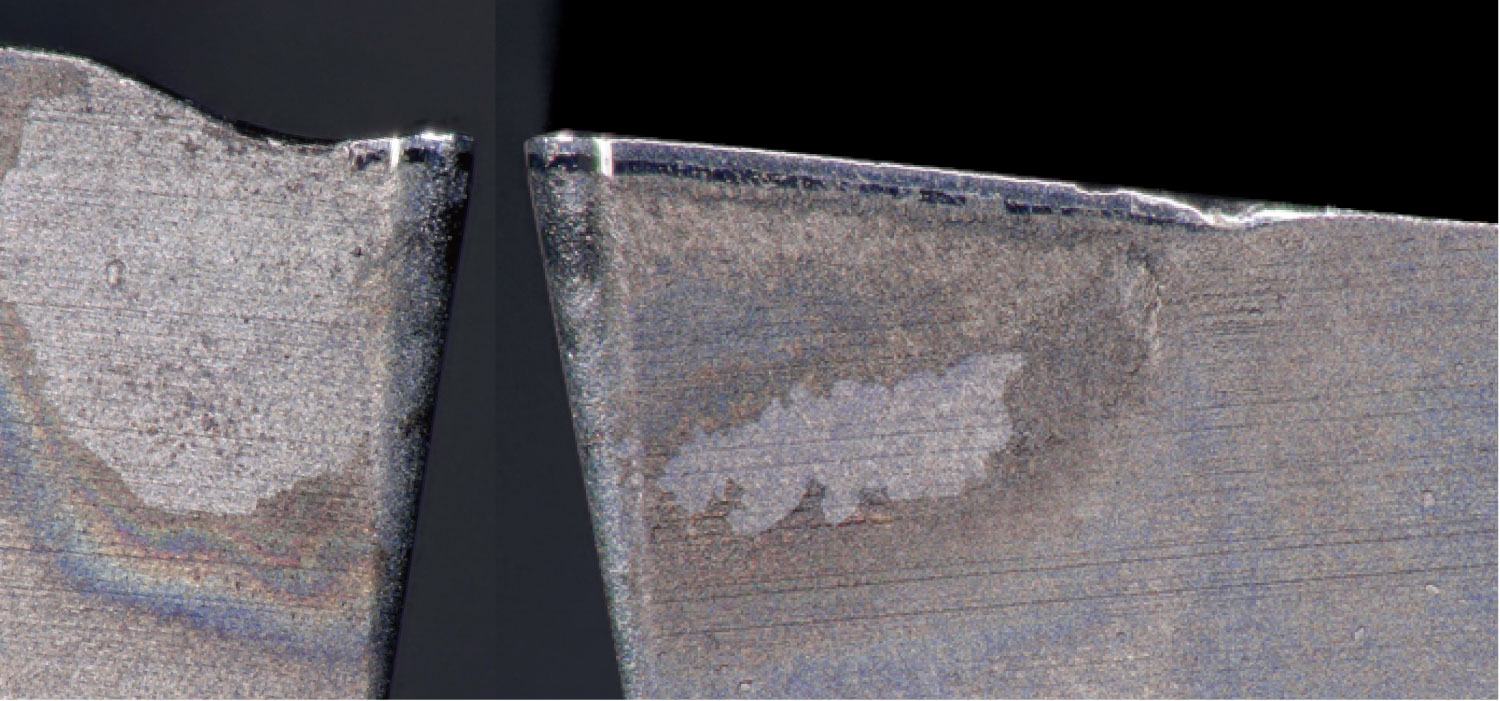

Dramatic reduction in cutting edge wear
Extended tool life even machining difficult-to cut materials

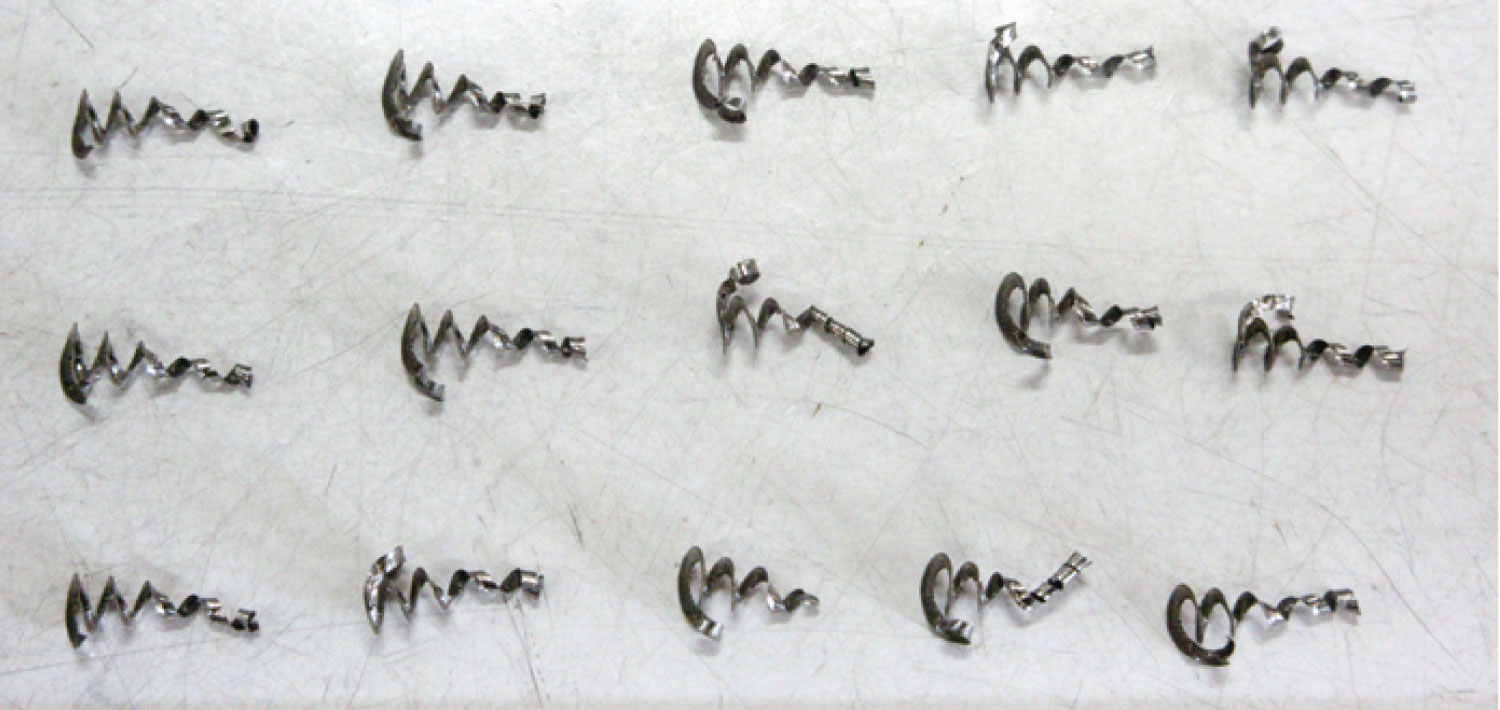

Stable chip removal with dramatic reduction in cutting edge wear

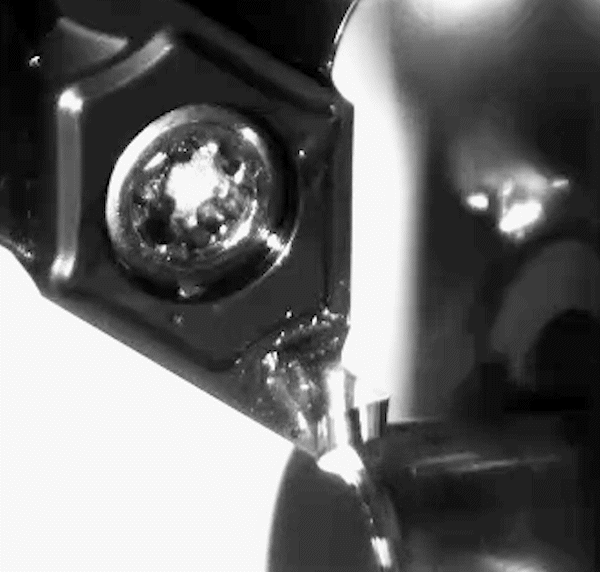

Stable chip formation during vibration cutting

Application

Front turning operations on swiss cnc using vibration cutting function

TMV-WP

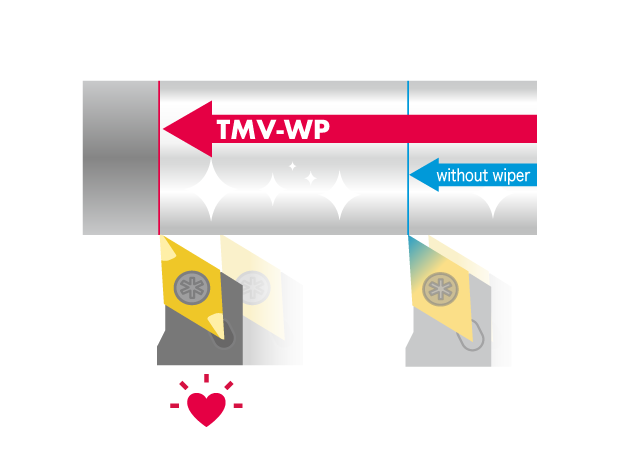

Double the feed rate and toollife & Reduce machining time by half.

Superior surface finish even under high feed conditions thanks to the wiper. Contributes to extended tool life by increasing feed.

Function range

Lineup

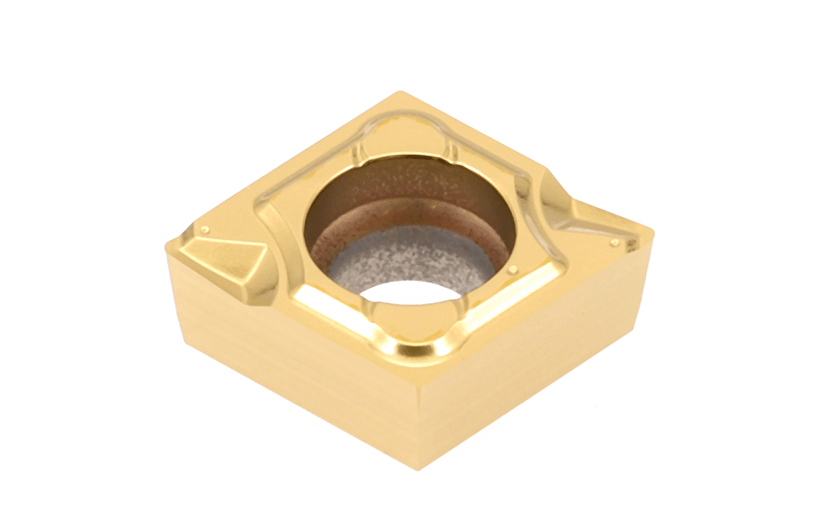

CCGT-TMV type insert

DCGT-TMV/WP type insert

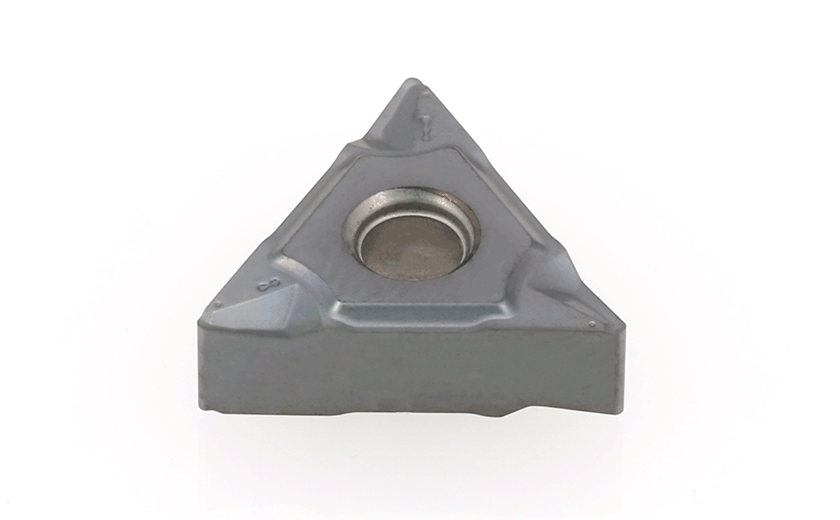

TNGG-TMV type insert

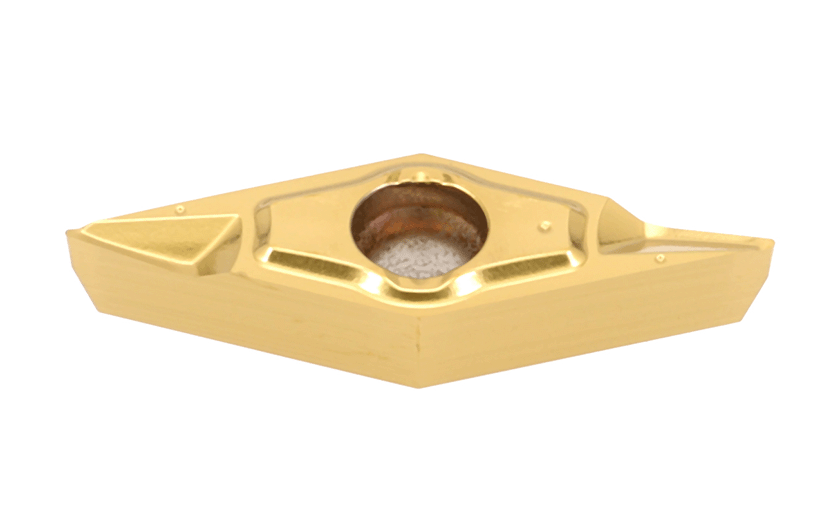

VCGT-TMV type insert

Cutting conditions

- - - Scroll the table - - -

Work material	Grade	v_c (m/min) (SFM)	a_p (mm) (inch)	f (mm/rev) (IPR)
Carbon steel Alloy steel	650	40 – 150 130 – 500	0.5 – 2.0 .020 – .080	0.05 – 0.2 .002 – .008
	DM4	40 – 150 130 – 500
	TM4	40 – 90 130 – 300
Difficult-to-cut Free-cutting stainless steel	650	40 – 150 130 – 500	0.5 – 2.0 .020 – .080	0.05 – 0.2 .002 – .008
	ST4	40 – 180 130 – 600
	DM4	40 – 100 130 – 330
	TM4	40 – 90 130 – 300
HRSA Co-Cr alloy Titanium	650	20 – 80 70 – 260	0.5 – 2.0 .020 – .080	0.05 – 0.2 .002 – .008
HRSA Co-Cr alloy	DM4	20 – 80 70 – 260	0.5 – 2.0 .020 – .080	0.05 – 0.2 .002 – .008
Non-ferrous metal	TM4	40 – 180 130 – 600	0.5 – 2.0 .020 – .080	0.05 – 0.2 .002 – .008

CITIZEN MACHINERY CO., LTD.　Vibration condition ( LFV )
P	Q	D
Mode 1	0.5	0.5

⚠ This product is designed with a low cutting edge, so please use it after aligning the core.
⚠ * When using an R0.08 radius R.003 insert, set the feed 0.02mm/rev .0008”/rev or less. [ Mode 2 / E4.0 / R0.5 ] is recommended when feed rate is higher than 0.02mm/rev .0008”/rev .

Star precision Co., Ltd.　Vibration Conditions (Step Cycle Pro)
A (Chip length factor)	D (Amplitude factor)
More than 2.0	More than 2.0

Tsugami Corporation.　Oscillation conditions
I (Oscillation frequency ratio)	K (Oscillation amplitude ratio)
0.5	1.5

⚠ Our products are designed with a low cutting edge, please use them after aligning with the center.
⚠ * When using insert radius R0.08 radius R.003 , please set the feed rate to 0.02mm/rev .0008”/rev or less. If the chips are not broken in pieces, consider adjusting K in the range from 1.2 – 2.0 as a guideline

Practical examples

CNC Lathe	Cincom L20-LFV
Work material	SUS316L 316LSS
Cutting speed	80 m/min 270 SFM
Feed	0.05 mm/rev .002 IPR
D.O.C. (ap)	1.0 mm .040”
Coolant	WET
Vibration condition	Mode 1 Q0.5 D0.5

* Materials other than stainless steel are currently being validated.

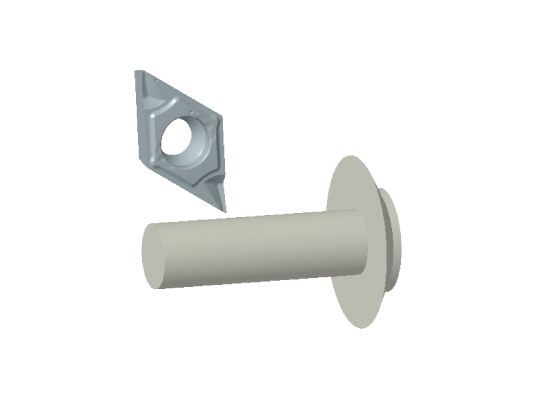

Construction machine parts
Work material： SGD material (SS polishing material)	Machining dia. : ⌀8 / 10.8 / 12 ⌀.31” / .425” / .472”
RPM： 2,500 rpm
Feed： 0.03 mm/rev .0012 (IPR)
D.O.C： 2.0 / 2.6 / 4.0 mm .0787 / .1024 / .1575 (inch)
Vibration condition ( LFV ) Mode1 / Q1.0 / D0.5
DM4 DCGT11T302MRTMV	600pcs / corner
Competitor’s PVD carbide	300pcs / corner

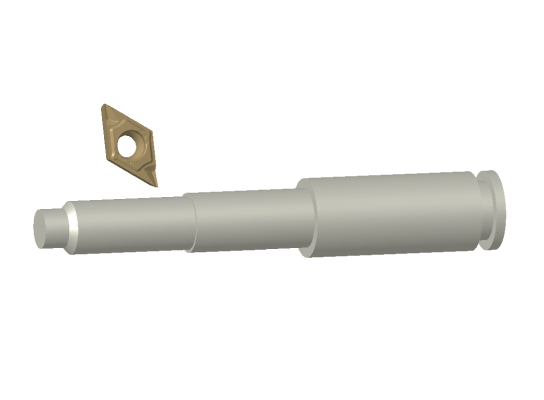

Valve parts
Work material： SUS304	Machining dia. : ⌀3.8 ⌀.15”
RPM： 2,263 rpm
Feed： 0.02 mm/rev .0008 (IPR)
D.O.C： 3.1 mm .1220 (inch)
Vibration condition ( LFV ) Mode2 / E3.0 / R0.5 / I0.02
ST4 DCGT11T302MRTMV	3,000pcs / corner
Competitor’s PVD carbide	2,200pcs / corner
